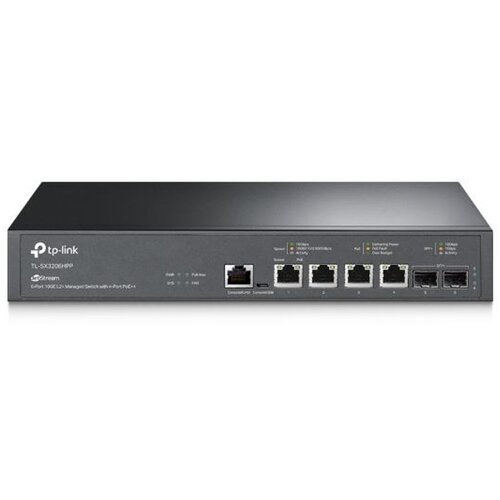

Tp-link JetStream 6-Port 10GE L2 Managed Switch with 4-Port PoE

Certification: CE, FCC, RoHS

Design
LED indicators: Yes
Rack mounting: Yes
Number of fans: 2 fan(s)
Product colour: Black

Power
Power consumption (max): 244.9 W
Power supply included: Yes
Power source: AC
AC input voltage: 100 240 V
AC input frequency: 50/60 Hz

Security
BPDU filtering/protection: Yes
Loop protection: Yes
IGMP snooping: Yes
SSH/SSL support: Yes
Authentication: Guest VLAN
DHCP features: DHCP snooping, DHCP server, DHCP client, DHCP relay, DHCPv6 client
Security algorithms: SSL/TLS, HTTPS
Authentication type: AAA, RADIUS, TACACS+
Access Control List (ACL): Yes

Operational conditions
Operating relative humidity (HH): 10 90%
Storage temperature (TT): 40 70 C
Operating temperature (TT): 0 50 C
Storage relative humidity (HH): 5 95%
Heat dissipation: 835.67 BTU/h

Management features
Quality of Service (QoS) support: Yes
Cloudmanaged: Yes
ARP inspection: Yes
Switch layer: L2+
System event log: Yes
Configuring Location Settings (CLI): Yes
Switch type: Managed
MIB support: Yes
Webbased management: Yes

Weight & dimensions
Height: 44 mm
Width: 294 mm
Depth: 180 mm

Network
Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3bt, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1w
Virtual LAN features: Private VLAN, VLAN mapping, Voice VLAN, Tagged VLAN
Flow control support: Yes
IP routing: Yes
VLAN support: Yes
Number of VLANs: 4000
Rate limiting: Yes
Headofline (HOL) blocking: Yes
Port mirroring: Yes
10G support: Yes
Routing entries: 512
Broadcast storm control: Yes
Link aggregation: Yes
Spanning tree protocol: Yes

Packaging data
Cables included: AC
Rack mount kit: Yes
Quick start guide: Yes

Protocols
Management protocols: SNMP v1/v2c/v3

Ports & interfaces
Basic switching RJ45 Ethernet ports type: 10G Ethernet (100/1000/10000)
Power connector: ACin jack
Console port: RJ45/microUSB
SFP+ module slots quantity: 2
Basic switching RJ45 Ethernet ports quantity: 4

Data transmission
Packet buffer memory: 16 MB
MAC address table: 32000 entries
Number of static routes: 48
Forwarding rate: 89.28 Mpps
Static route: Yes
Jumbo frames support: Yes
Switching capacity: 120 Gbit/s
Jumbo frames: 9000

Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 60 W
Power over Ethernet plus (PoE+) ports quantity: 4
Total Power over Ethernet (PoE) budget: 200 W
Power over Ethernet (PoE): Yes

Multicast features
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: MLD v1/v2
