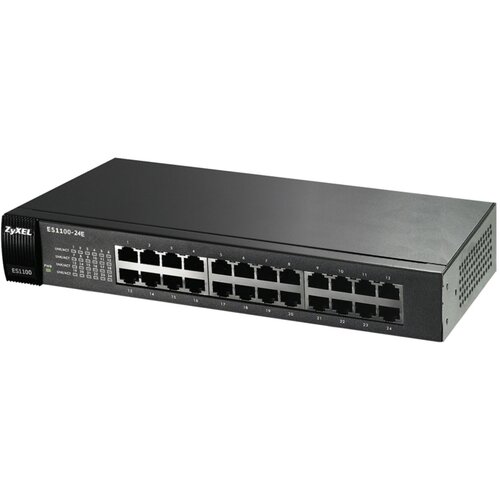

Zyxel ES-1100-24E 24-Port Switch Unmanaged

24port FE Unmanaged Switch: Zyxel ES110024E

The ZyXEL ES1100 Series consists of unmanaged Fast Ethernet switches that provide a highperformance solution for Fast Ethernet connections to the desktop. The ES1100 Series is the ideal solution for bandwidthintensive applications such as highresolution photo delivery, video/audio streaming and downloading, and server farm connections.

Better performance and efficiency
The entire range of ES1100 Series Fast Ethernet switches is designed to improve network performance and efficiency. The ES1100 series switches use Nway autonegotiation to connect to network partners at the highest possible data speed and automatically activate duplex mode.

Reliability during transmission
Unlike shared 10/100 Mbps networks, the ZyXEL ES1100 Series provides dedicated bandwidth. This avoids data congestion. With duplex mode, the ES1100 Series can double the effective bandwidth by enabling bidirectional communication. The storeandforward service ensures low latency and errorfree packet delivery. The plugandplay function and compatibility with multiple network protocols make installation and management of the ES1100 series quick and easy.

• Total number of connections: 24
• Switching capacity: 4.8 Gbit/s
• Switching forwarding rate: 3.6 MPPS
• Packet buffer (byte): 256 K
• MAC address capacity: 8 K
• Jumbo frame support: up to 2048 bytes
• Flow Control: 802.3x, BackPressurebased, 802.1p CoS
• Loop detection
• Auto MDI/MDIX
• Dimensions: 325 x 227 x 71 mm
• Weight: 2.1 kg
