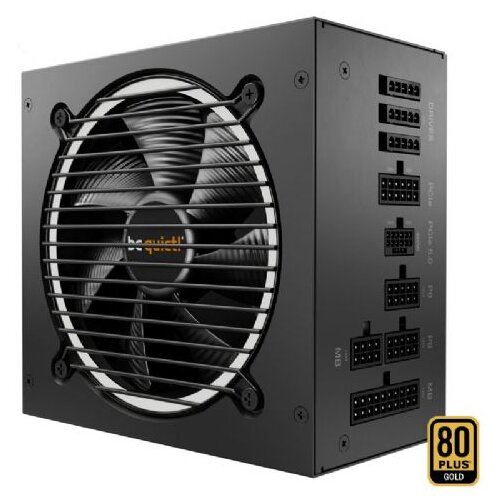

Be Quiet! Napajanje BE QUIET Pure Power 12 M 650W Gold PSU BN342

Technical details
Compliance certificates: RoHS
Warranty period: 10 year(s)
Sustainability certificates: ENERGY STAR, ErP
Sustainability compliance: Yes

Design
On/off switch: Yes
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Product colour: Black
Fan location: Top
Cooling type: Active

Power
AC input voltage: 100 240 V
Power Factor Correction (PFC) type: Active
Input current: 10/5 A
Max output current (12V): 0.3 A
Efficiency: 92.7%
Combined power (+3.3V): 120 W
Combined power (+5Vsb): 15 W
Total power: 650 W
Max output current (+5V): 20 A
AC input frequency: 50 60 Hz
Max output current (+5Vsb): 3 A
Power factor: 0.98
Combined power (12V): 3.6 W
Combined power (+5V): 120 W
Max output current (+12V2): 28 A
Combined power (+12V): 650 W
Max output current (+3.3V): 20 A
Power protection features: Short circuit, Over voltage, Over current, Overheating, Over power
Max output current (+12V1): 32 A
Power Good signal delay range: 100 150 ms
Peak power: 720 W

Operational conditions
Operating temperature (TT): 0 40 C

Weight & dimensions
Depth: 150 mm
Height: 86 mm
Width: 160 mm

Performance
EPS version: 2.92
Mean time between failures (MTBF): 100000 h
ATX version: 3.0
Noise level: 19.9 dB
Purpose: PC
80 PLUS certification: 80 PLUS Gold
Power supply unit (PSU) form factor: ATX

Packaging data
Package type: Box

Packaging content
Cables included: PATA, PCIe, Peripheral (Molex), SATA

Ports & interfaces
PCI Express power connectors (6+2 pin): 2
Motherboard power cable length: 55 cm
CPU P4 connector (4pin): 1
Cabling type: FullyModular
SATA power cable length: 800 mm, 650, 950 mm, 500
Peripheral (Molex) power connectors (4pin): 1
Motherboard power connector: 20+4 pin ATX
Peripheral (Molex) power cable length: 550 mm
ATX power connector (20+4 pin): Yes
Number of SATA power connectors: 5
EPS power connector (4+4 pin): Yes
Number of PATA power connectors: 2
PCI Express connector: Yes

Other features
Number of screws: 5
Screws included: Yes
Cable ties included: Yes
Noise level (silent mode,
