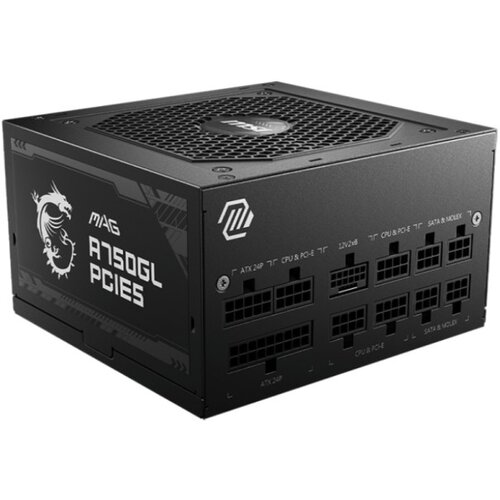

MSI MAG A750GL PCIE5 power supply unit 750 W 20+4 pin ATX ATX Black

Design
Illumination: No
On/off switch: Yes
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)

Power
Power protection features: Over power, Over current, Short circuit, Over voltage, Overheating
Efficiency: 90%
AC input frequency: 47 63 Hz
AC input voltage: 100 240 V
Combined power (+3.3V): 110 W
Total power: 750 W
Max output current (+5V): 20 A
Power Factor Correction (PFC) type: Active
Combined power (+12V): 744 W
Max output current (+3.3V): 20 A
Max output current (+5Vsb): 2.5 A
Max output current (12V): 0.3 A
Maximum input current (@110V): 8 A
Combined power (+5Vsb): 12.5 W
Max output current (+12V): 62 A
Combined power (12V): 3.6 W
Maximum input current (@220V): 4 A
Combined power (+5V): 110 W

Weight & dimensions
Depth: 140 mm
Height: 86 mm
Width: 150 mm

Performance
80 PLUS certification: 80 PLUS Gold
Power supply unit (PSU) form factor: ATX
Purpose: PC

Packaging data
Package type: Box

Ports & interfaces
EPS power connector (8pin): No
Peripheral (Molex) power connectors (4pin): 4
PCI Express power connectors (6+2 pin): 3
Cabling type: FullyModular
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): No
Number of SATA power connectors: 8
ATX Power connector (24pin): No
EPS power connector (4+4 pin): Yes
Motherboard power cable length: 45 cm
Motherboard power connector: 20+4 pin ATX

Logistics data
Harmonized System (HS) code: 84733020
