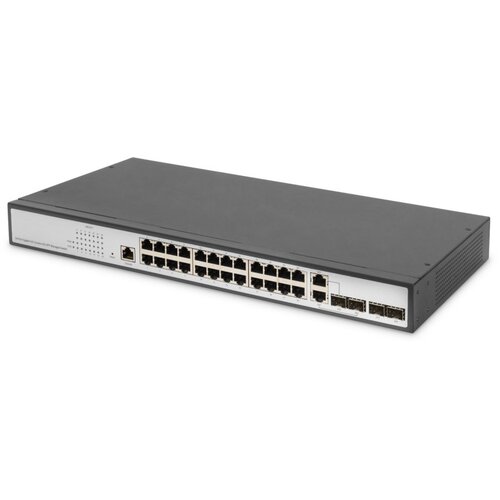

Digitus 24-Port Gigabit Switch 19Zoll, Managed, 2 Uplinks

DIGITUS 24Port Gigabit Switch 19inch, Managed, 2 Uplinks

Highest bandwidth and performance for professional requirements. Optimal management options via the user interface.

Features:

• The manageable Gigabit network switch is designed for use in medium to large network environments and can be operated as a desktop switch or installed in a 19" rack
• For integration into your network, 24 RJ45 ports are available as well as 2 x RJ45 ports and 2 x SFP/RJ45 combo ports as uplink, which also enable connection via fibre optics Furthermore, a CLI console port is available
• The L2 management functions include setting options such as: VLAN, link aggregation, port mirroring, port trunking, SNMP network management, QoS/CoS applications and STP/RSTP/MSTP.
• Supported network standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.3az as well as MDI/MDIX, 10/100/1000BaseTX, IEEE802.1x and IEEE802.1Q.
• In corporate networks, the L2 switch can, for example, separate individual VLANs from each other and bundle several ports to achieve a higher transfer rate to another switch

Technical data:

• 24x RJ45 ports (1000Mbps)
• 2x RJ45/ SFP combo ports for fibre optic connection or Ethernet
• 2x SFP uplink ports for SFP modules
• 1x RJ45 console port
• Compatible with the standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3z and 802.3ad Auto MDI/MDIX function
• 8K MAC addresses
• QoS support of Layer 4 classification
• Port mirroring for efficient network monitoring
• Port Trunk for bandwidth expansion
• VLAN for performance and security
• 802.1x port authentication
• SNMP network management
• Integrated webbased management
• Overvoltage protection +/ 6 kV
• Dimensions (W x D x H): 440 x 208 x 44 mm
• Number of ports: 24
• Ethernet speed: Gigabit
• Industrial use: no
• Number of ports (uplink): 4
• Managed: yes
• Mounting type: 19 inch, desktop
• Suitable for outdoor use: no
• PoE (Power over Ethernet): no
• Protection against vandalism: no
• Uplink port connection: RJ45/SFP
• VLAN: yes
