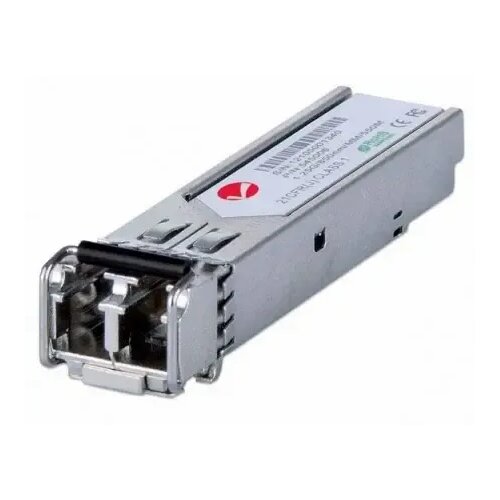

Intellinet Transceiver Module Optical, Gigabit Ethernet SFP Mini-GBIC, 1000Base-Sx (LC) Multi-Mode Port, 550m,MSA Compliant, Equivalent to Cisco GLC-SX-MM, Three Year Warranty

Certification: FCC Class B, CE, RoHS, IEC60825, UKCA, NDAA

Features
Product colour: Aluminium
HotPlug support: Yes

Power
Power consumption (typical): 1 W
Input voltage: 3.3 V

Operational conditions
Operating temperature (TT): 0 70 C
Storage temperature (TT): 40 85 C
Operating relative humidity (HH): 5 95%

Weight & dimensions
Width: 13 mm
Weight: 15 g
Depth: 55 mm
Height: 12 mm

Performance
SFP transceiver type: Fiber optic
Tx power (max): 3 dBmW
Tx power (min): 8 dBmW
Maximum transfer distance: 550 m
Fiber optic connector: LC
Ethernet interface type: Gigabit Ethernet
Link budget: 8 dB
Fiber ethernet cabling technology: 1000BASE
Fiber cable diameters supported (core/cladding): 62.5/125 m, 50/125
Interface type: SFP
Duplex system: Full
Multimode fiber (MMF) supported: Yes
Networking standards: IEEE 802.3z
Maximum data transfer rate: 1000 Mbit/s
Wavelength: 850 nm

Packaging data
Number of products included: 1 pc(s)
