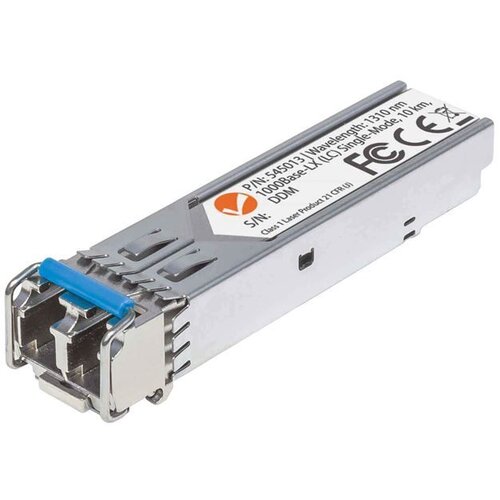

Intellinet Transceiver Module Optical, Gigabit Fiber SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, MSA Compliant, Equivalent to Cisco GLC-LH-SM, Fibre, Three Year Warranty

Technical details
Sustainability certificates: RoHS
Certification: FCC Class A, CE Mark

Features
HotPlug support: Yes
Product colour: Aluminium

Power
Input voltage: 3.3 V
Power consumption (typical): 1 W

Operational conditions
Operating relative humidity (HH): 10 85%
Storage temperature (TT): 40 85 C
Operating temperature (TT): 0 70 C

Weight & dimensions
Depth: 57 mm
Width: 14 mm
Weight: 18 g
Height: 12 mm

Performance
Ethernet LAN: Yes
Tx power (min): 8 dBmW
Ethernet interface type: Gigabit Ethernet
Maximum transfer distance: 10000 m
Harmonized System (HS) code: 85369010
Duplex system: Full
Networking standards: IEEE 802.3z
Interface type: SFP
Wavelength: 1310 nm
Link budget: 14 dB
Tx power (max): 3 dBmW
Singlemode fiber (SMF) supported: Yes
Maximum data transfer rate: 1000 Mbit/s
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 m
SFP transceiver type: Fiber optic

Packaging data
Number of products included: 1 pc(s)
