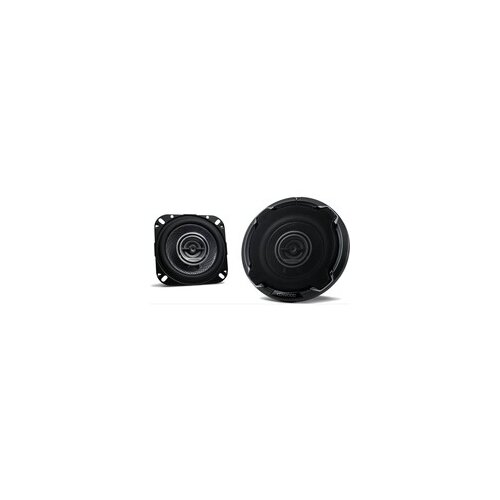

Kenwood KFCPS1096

The loudspeakers of the "Performance Standard" series combine firstclass sound characteristics with highquality workmanship and modern material properties. The tweeter thus enables a particularly differentiated sound and ensures a precise feeling of space when playing music in the vehicle.

Features:

• 100 mm 2way loudspeaker system
• Polypropylene woofer membrane with diamond pattern
• Metal loudspeaker basket with rubber protectors
• 30 mm dome tweeter
• 330W Peak load capacity
• Accoustic Sound Harmonizer
• Sound Field Enhancer
• 50 cm loudspeaker connection cable included in delivery
• Loudspeaker cover included

Loudspeaker features:

• Loudspeaker system: Twoway loudspeaker
• Peak power handling: 220 W
• Rated power: 50 W
• Speaker size: 100 mm
• Loudspeaker cone: special diamond pattern
• Magnet type. Ferrite
• Connections. Plug connections
• Installation principle. Door/rear installation

Technical data loudspeaker / woofer:

• Material of the cone diaphragm. Polypropylene (PP) Cone
• Loudspeaker basket. Steel
• Loudspeaker surround. Rubber
• Sensitivity. 85dB/W/m
• Transmission range: 114 Hz 25000 Hz
• Speaker impedance: 4Ω
• Dimensions incl. cover: 135 x 135 x 58.6 mm
• Dimensions without cover: 111 x 111 x 49.4 mm
• Installation depth: 43.3 mm
• Diameter of mounting hole: Ø93.2 mm
• Overhang of the tweeter: 6 mm
• Weight of loudspeaker with cover (piece): 527 gr
• Weight of speaker without cover (piece): 480 gr
• Gross weight: 1100 gr
• magnet weight: 160 gr

Technical data tweeter:

• cone dimensions: 25 mm
• Cone material: Balanced Dome
• Magnet type: Neodymium
