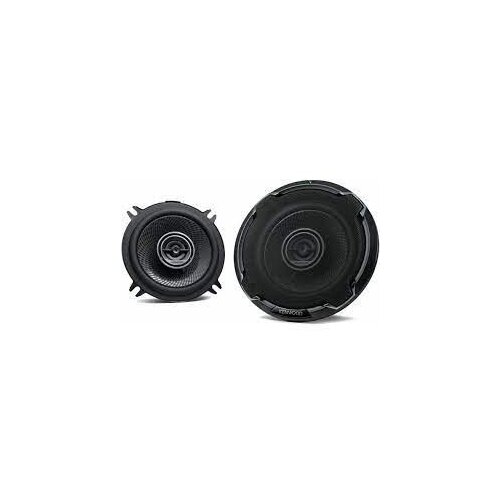

Kenwood KFCPS1396

The loudspeakers of the "Performance Standard" series combine firstclass sound characteristics with highquality workmanship and modern material properties. The tweeter thus enables a particularly differentiated sound and ensures a precise feeling of space when playing music in the vehicle.

Features:

• 130 mm 2way loudspeaker system
• Polypropylene woofer membrane with diamond pattern
• Metal loudspeaker basket with rubber protectors
• 30 mm dome tweeter
• 320W Peak Power
• Accoustic Sound Harmonizer
• Sound Field Enhancer
• 50 cm loudspeaker connection cable included in delivery
• Loudspeaker cover included

Loudspeaker features:

• Loudspeaker system: Twoway loudspeaker
• Peak power handling: 320 W
• Rated power: 75 W
• Speaker size: 130 mm
• Loudspeaker cone: special diamond pattern
• Magnet type: Ferrite
• Connections: Plug connections
• Installation principle: Door/rear installation

Technical data loudspeaker / woofer:

• Material of cone: Polypropylene (PP) Cone
• Loudspeaker basket: steel
• Loudspeaker surround: Rubber
• Sensitivity: 85dB/W/m
• Transmission range: 80 Hz 25000 Hz
• Speaker impedance: 4Ω
• Dimensions incl. cover: 158 x 158 x 61.4 mm
• Dimensions without cover: 131 x 131 x 53 mm
• Installation depth: 46 mm
• Diameter of mounting hole Ø: 112.6 mm
• Overhang of the tweeter: 6 mm
• Weight of loudspeaker with cover (piece): 563 gr
• Weight of loudspeaker without cover (piece): 500 gr
• Gross weight: 1100 gr
• magnet weight: 160 gr

Technical data tweeter:

• cone dimensions: 25 mm
• Cone material: Balanced Dome
• Magnet type: Neodymium
