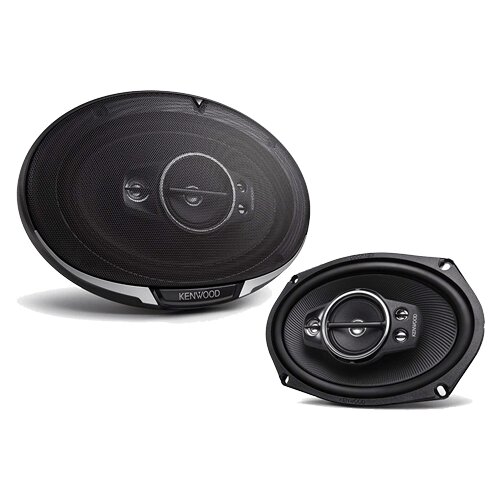

Kenwood KFCPS6996

The loudspeakers of the "Performance Standard" series combine firstclass sound characteristics with highquality workmanship and modern material properties. The tweeter thus enables a particularly differentiated sound and ensures a precise feeling of space when playing music in the vehicle.

Features:

• 5way loudspeaker
• Polypropylene woofer membrane with diamond pattern
• Loudspeaker bead made of urethane
• 44 mm midrange driver, 20 mm tweeter
• 12 mm ceramic super tweeter
• 650 Watt peak load capacity
• Accoustic Sound Harmonizer
• Sound Field Enhancer
• 4.5 mtr. loudspeaker connection cable included in delivery
• Loudspeaker cover included

Loudspeaker Features:

• Loudspeaker system: Oval 5way loudspeaker
• Peak power handling: 650 W
• Rated power: 150 W
• Speaker size: 6" x 9"
• Loudspeaker: conespecific diamond pattern
• Magnet type: Ferrite
• Connections: Plug connections
• Installation principle: Door/rear installation

Technical data loudspeaker / woofer:

• Material of cone: Polypropylene (PP) Cone
• Loudspeaker basket: steel
• Loudspeaker surround: Urethane
• Sensitivity: 88dB/W/m
• Transmission range: 58 Hz 22000 Hz
• Speaker impedance: 4Ω
• Dimensions incl. cover: 266.1 x 197.3 x 108.6 mm
• Dimensions without cover: 218.5 x 164 x 92.5 mm
• Installation depth: 80.5 mm
• diameter of the cutout: 218,5mm x 149,5mm
• Overhang of the tweeter: 12 mm
• Weight of loudspeaker with cover (pieces): 1690 gr
• Weight of speaker without cover (piece): 1550 gr
• Gross weight: 3380 gr
• magnet weight: 450 gr

Technical data midrange driver:

• cone dimensions: 44 mm
• Cone type: Balanced Dome
• Magnet type: Ferrite
