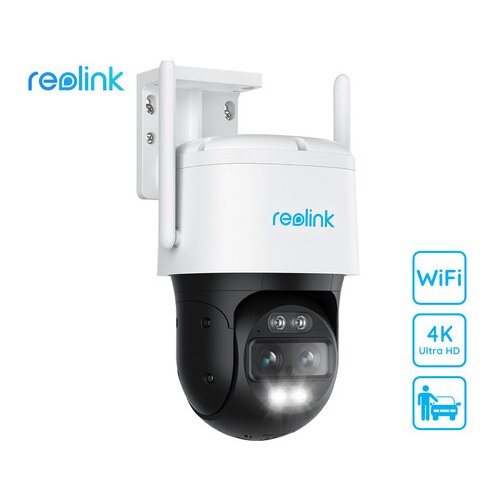

Reolink TrackMix Series W760 - 4K Outdoor Camera, Dual View, Auto-Zoom Tracking, 2.4/5Ghz Wi-Fi, Color Night Vision

Design
Product colour: White
Form factor: Turret
International Protection (IP) code: IP65
Mounting type: Wall

Power
Power source type: DC
DC output current: 1 A
DC output voltage: 12

Security
Human and vehicle targets classification: Yes
Security algorithms: WPA2PSK, WPAPSK
Video motion detection: Yes

Operational conditions
Operating temperature (TT): 10 55 C
Operating relative humidity (HH): 10 90%

Management features
Reset button: Yes

Weight & dimensions
Height: 129 mm
Width: 147 mm
Weight: 1.21 kg
Depth: 228 mm

Network
Bluetooth: No
User access level: Administrator, User
Networking standards: IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11b
WiFi standards: 802.11g, WiFi 4 (802.11n), 802.11b, 802.11a
WiFi: Yes
Ethernet LAN: Yes
Supported network protocols: HTTP, HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP,RTMP, SMTP, ONVIF, NTP, DHCP, DNS, DDNS, P2P
Ethernet interface type: Fast Ethernet
Live view: Yes
Number of users: 20 user(s)

System requirements
Mac operating systems supported: Yes
Windows operating systems supported: Yes
Mobile operating systems supported: iOS, Android

Performance
Antenna type: External
Connectivity technology: Wireless
Antennas quantity: 2
Type: IP security camera
Infrared (IR) cutoff filter: Yes
Placement supported: Outdoor
Day/night mode: Yes
Autotracking: Yes
Virtual assistant: Google Assistant
Packaging content: 1* Trackmix Series W760 1* Mounting Template 1* Waterproof Lid 1* Power Adapter 1* 1m Network Cable 1* 4.5m Power Extension Cable 1* Surveillance Sticker 1* Quick Start Guide 1* Pack of Screws

Packaging content
Number of cameras: 1
Mounting kit: Yes
Manual: Yes
Screws included: Yes

Audio
Audio system: 2way
Builtin microphone: Yes
Builtin speaker(s): Yes

Storage
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Builtin HDD: No
Maximum memory card size: 256 GB

Ports & interfaces
DCin jack: Yes
Ethernet LAN (RJ45) ports: 1

Camera
Camera tilt control: Yes
Camera pan control: Yes
Tilt angle range: 0 90
Lens viewing angle, horizontal: 38 104
Lens viewing angle, vertical: 21 60
Pan range: 0 355
Tilt speed: 1.5 /sec
Pan speed: 90 /sec

Image sensor
Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS

Video
Bit rate: 128Kbps 8192Kbps
Supported video modes: 2160p
Maximum resolution: 3840 x 2160 pixels
Supported graphics resolutions: 3840 x 2160
Total megapixels: 8 MP
Video formats supported: H.265, H.264
Frame rate: 25 fps
Video streaming: Yes
Video recording: Yes
Video compression formats: H.264, H.265

Night vision
Infrared wavelength: 850 nm
LED type: IR/White
Night vision distance: 30 m
Number of illumination LEDs: 2
Night vision: Yes

Lens system
Zoom capability: Yes
Maximum aperture number: 1.6
Fixed focal length: 2.8 mm
Number of lenses: 1
