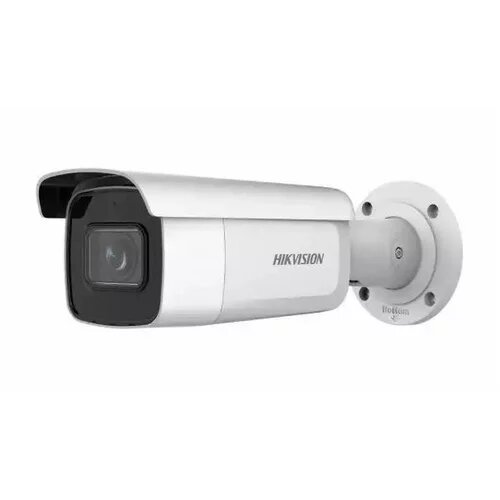

Hikvision Digital Technology DS-2CD2643G2-IZS Outdoor Bullet IP Security Camera 2688 x 1520 px Ceiling/Wall

Technical details
Sustainability certificates: RoHS, REACH

Design
Housing material: Aluminium
Mounting type: Ceiling/wall
Form factor: Bullet
Product colour: White
International Protection (IP) code: IP67

Power
Power consumption (max): 13 W
Power source type: DC, PoE
DC output voltage: 12

Security
HTTPS encryption: Yes
Video motion detection: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
IP address filtering: Yes
Antiflicker: Yes
Mirror: Yes
Password protection: Yes
Heartbeat: Yes

Operational conditions
Storage relative humidity (HH): 0 95%
Operating relative humidity (HH): 0 95%
Storage temperature (TT): 30 60 C
Operating temperature (TT): 30 60 C

Management features
Reset button: Yes
Web browser: Yes
Behavior analysis: Intrusion detection, Line crossing detection
Webbased management: Yes

Weight & dimensions
Package width: 385 mm
Width: 308.5 mm
Package depth: 190 mm
Package weight: 1.96 kg
Depth: 97.9 mm
Height: 93 mm
Weight: 1.39 kg
Package height: 180 mm

Network
Networking standards: IEEE 802.3at, IEEE 802.1x
Quality of Service (QoS) support: Yes
WiFi: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Bluetooth: No
Number of users: 32 user(s)

Performance
Number of languages: 33
Day/night mode: Yes
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Infrared (IR) cutoff filter: Yes
Placement supported: Outdoor
Connectivity technology: Wired

Packaging content
Number of cameras: 1

Audio
Voice codecs: G.722.1, G.726, G.711ulaw, G.711alaw, MP2L2
Audio input channels: 1 channels
Audio formats supported: AAC, PCM, MP3
Audio output channels: 1 channels

Storage
Maximum memory card size: 256 GB
Compatible memory cards: MicroSDHC, MicroSD (TransFlash), MicroSDXC
Builtin HDD: No
Card reader integrated: Yes

Ports & interfaces
Ethernet LAN (RJ45) ports: 1

Camera
Pan range: 0 360
Camera shutter speed: 1/3 1/100000 s
Angle of rotation: 360
Tilt angle range: 0 90
Camera tilt control: Yes
Camera pan control: Yes

Image sensor
Optical sensor size: 25.4 / 3 mm (1 / 3")
Progressive scan: Yes
Sensor type: CMOS
Number of sensors: 1

Video
Video compression formats: H.264, H.264+, MJPEG, H.265, H.265+
Total megapixels: 4 MP
Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Video streaming: Yes
Image quality adjustment: Contrast, Sharpness, Saturation, Brightness
Privacy masking: Yes
Frame rate: 30 fps
Highlight Compensation (HLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction: Yes
Back Light Compensation (BLC): Yes
Region of Interest (ROI) encoding: Yes
Noise reduction technology: 3D noise reduction
Bit rate: 32 Kbps 8 Mbps
Maximum resolution: 2688 x 1520 pixels

Night vision
LED type: IR
Night vision distance: 60 m
Night vision: Yes
Infrared wavelength: 850 nm

Lens system
Maximum aperture number: 1.6
Number of lenses: 1
