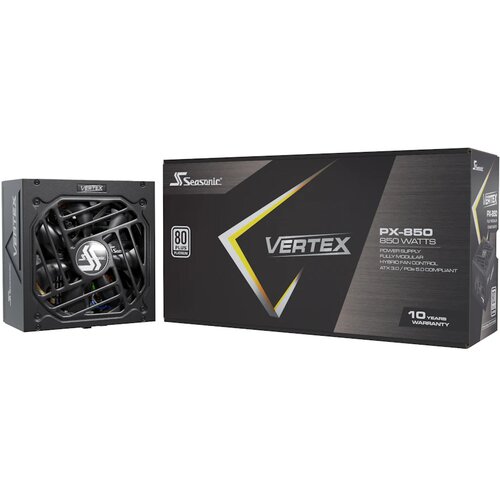

Seasonic VERTEX PX-850 power supply unit 850 W 24-pin ATX ATX Black

Technical details
Sustainability certificates: ENERGY STAR
Compliance certificates: REACH, WEEE, RoHS

Design
Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)

Power
Max output current (+5Vsb): 3 A
Max output current (+12V): 70 A
Max output current (+5V): 20 A
Combined power (+3.3V): 125 W
Combined power (+12V): 840 W
AC input voltage: 100 240 V
Power protection features: Short circuit, Over voltage, Under power, Over power
Max output current (+3.3V): 20 A
AC input frequency: 50 60 Hz
Max output current (12V): 0.3 A
Combined power (+5V): 125 W
Input current: 11 5.5 A
Combined power (12V): 3.6 W
Combined power (+5Vsb): 15 W
Total power: 850 W

Operational conditions
Operating temperature (TT): 0 50 C

Weight & dimensions
Height: 86 mm
Width: 150 mm
Depth: 160 mm

Performance
Bearing technology: FDB
Purpose: PC
80 PLUS certification: 80 PLUS Platinum
Mean time between failures (MTBF): 150000 h
Power supply unit (PSU) form factor: ATX
ATX version: 3.0

Packaging data
Package type: Box

Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA

Ports & interfaces
EPS power connector (8pin): Yes
Cabling type: FullyModular
PCI Express power connectors (16pin): 1
SATA power cable length: 950 mm, 550, 470, 860 mm, 570, 760, 700 mm
Peripheral (Molex) power cable length: 690 mm, 470
PCI Express power cable length: 75 cm
ATX power connector (20+4 pin): Yes
CPU power cable length: 65 cm
Motherboard power connector: 24pin ATX
Peripheral (Molex) power connectors (4pin): 3
Motherboard power cable length: 61 cm
