Thermaltake Toughpower GF3 1350W 80+ Gold for new Gen GPU

Designed with native PCIe 12+4pin connectors, the Toughpower GF3 series is compatible with Intel ‘s ATX 3.0 specification and is built for nextgen PCIe 5.0 graphics cards. It can pipe up to 600W of power to PCIe 5.0 graphics cards.

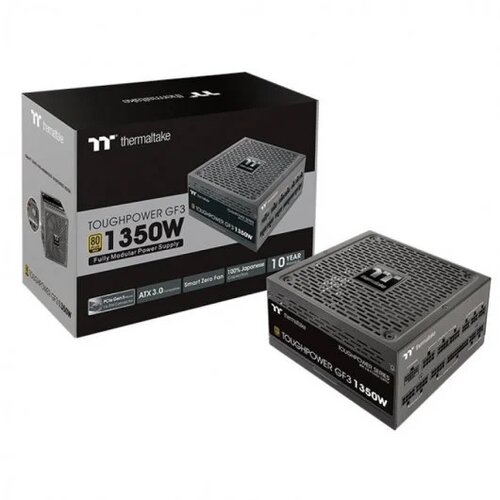

Toughpower GF3 1350W Gold TT Premium Edition
PCIe Gen 5.0 Ready! Designed with native PCIe 12+4pin modular connectors, the Toughpower GF3 series is built for the nextgen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 1350W comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.

Fully Compatible With Intel PSDG ATX 3.0 Specifications
Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.

Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards has increased, so has their demand for power. The GF3 series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections. (1 VGA Power Connector, 2 VGA Power Connector, 3 VGA Power Connector, 16 pin VGA Power Connector)

PCIe Gen 5.0 Ready
Toughpower GF3 1350W Gold comes with a 16pin connector to offer powerful and stable performance allowing the PSU to run nextgeneration GPUs naturally. Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.

Ultra Quiet Smart Zero Fan
Designed with the Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.

30mV Low Ripple Noise Design
Topend build quality with low ripple noise. All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and allows your performancecritical components to function reliably for longer.

Extremely Strict Voltage Regulation ±3%
The voltage regulation, more strict than Intel’s standard +5%,7% for major rails and ±10% for 12V, is set to no more than ±3% for +12V and +5V, providing steady clean power through exceptional voltage stability.

Fully Modular LowProfile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Lowprofile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

100% High Quality Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail & HighClass Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

140mm Hydraulic Bearing Fan
Featuring a 140mm hydraulic bearing fan to guarantee superior cooling performance.

80 PLUS Gold Certified and Intel C6/C7 States Ready
Tough power GF3 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Specification:

• P/N: PSTPD1350FNFAGE4
• Model: TPD1350AH3FSG
• Max. Output Capacity: 1350W
• Colour: Black
• Dimensions ( W x H x D ): 150mm x 86mm x 160mm
• Weight: 1.83 kg
• PFC (Power Factor Correction): Active PFC
• Power Good Signal: 100250 msec
• Input Current: 16 8A
• Input Frequency Range: 5060Hz
• Input Voltage: 100 240V
• Operating Temperature: 0°C to + 50°C
• Operating Humidity: 20% to 90%, noncondensing
• Storage Temperature: 40°C to + 70°C
• Storage Humidity: 20% to 95%, noncondensing
• Cooling System: 14cm hydraulic bearing fan
• Efficiency: Meet 80 PLUS®Gold at 115Vac input.
• MTBF: 100,000 hrs minimum
• PCIE 6+2pin: 6
• PCIE 12+4pin: 1
