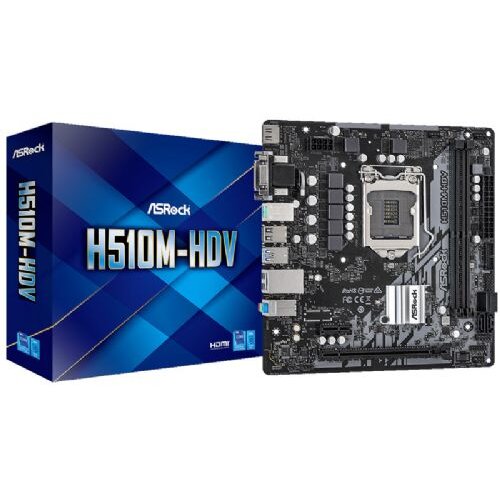

AsRock Intel LGA1200 H510M-HDV

Processor
Maximum number of SMP processors: 1
Processor socket: LGA 1200
Compatible processor series: Intel Core i3, Intel Core i7, Intel Core i9, Intel Core i5
Processor manufacturer: Intel

Features
Audio chip: Realtek ALC897
Motherboard chipset: Intel H470
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX

Memory
Supported memory types: DDR4SDRAM
Memory slots type: DIMM
Number of memory slots: 2
Memory channels: Dualchannel
Supported memory clock speeds: 2666, 2133, 2933, 2400, 2800
Maximum internal memory: 64 GB

Weight & dimensions
Depth: 198 mm
Width: 231 mm

Network
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
WiFi: No
LAN controller: Realtek 8111H

Internal I/O
USB 2.0 connectors: 2
ATX Power connector (24pin): Yes
CPU fan connector: Yes
TPM connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
Number of COM connectors: 1

BIOS
BIOS type: UEFI AMI

Storage controllers
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
VGA (DSub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
PS/2 ports quantity: 2
HDMI ports quantity: 1
USB 2.0 ports quantity: 2
DVID ports quantity: 1
Ethernet LAN (RJ45) ports: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
