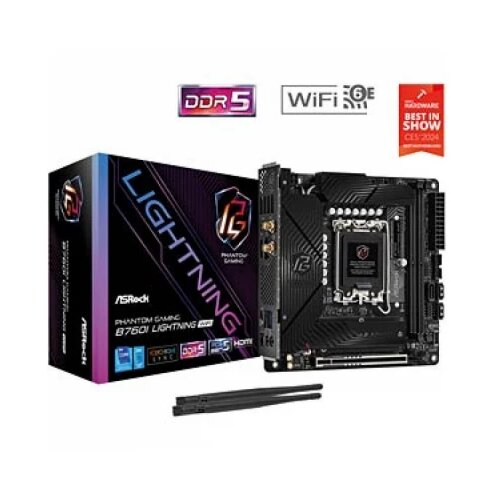

AsRock B760I LIGHTNING WIFI Motherboard

Processor
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Compatible processor series: Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Core i5, Intel Celeron, Intel Core i3
Processor socket: LGA 1700

Graphics
Maximum resolution: 7680 x 4320 pixels
Certification: FCC, CE, ErP/EuP

Features
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Product colour: Black
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Motherboard chipset: Intel B760
Motherboard form factor: MiniITX
Audio output channels: 7.1 channels

Memory
Memory channels: Dualchannel
Number of memory slots: 2
Memory slots type: DIMM
Supported memory types: DDR5SDRAM
Supported memory clock speed (max): 8600 MHz
Unbuffered memory: Yes
Maximum internal memory: 96 GB

Weight & dimensions
Width: 170 mm
Depth: 170 mm

Network
WiFi: Yes
Top WiFi standard: WiFi 6E (802.11axe)
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
WiFi standards: 802.11a, WiFi 6 (802.11ax), WiFi 5 (802.11ac), 802.11 axe, 802.11b, WiFi 6E (802.11ax), 802.11g, WiFi 4 (802.11n)
Bluetooth: Yes
LAN controller: Dragon RTL8125BG

Internal I/O
CPU fan connector: Yes
EPS power connector (8pin): Yes
Number of chassis fan connectors: 2
12V power connector: Yes
USB TypeC socket on the front panel: Y
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
Number of SATA III connectors: 3
ATX Power connector (24pin): Yes

BIOS
BIOS type: UEFI AMI

Packaging content
Cables included: SATA
Screws included: Yes
Antenna included: Yes

Storage controllers
Number of storage drives supported: 5
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Supported storage drive types: HDD & SSD
RAID levels: 5, 1, 0
RAID support: Yes

Rear panel I/O ports
Lineout: Yes
WiFiAP antenna jack: 2
HDMI ports quantity: 1
MIC input: 1
Number of USB 3.2 Gen 2 TypeA ports: 1
SPDIF optical output: Y
USB connector type: USB TypeC, USB TypeA
Ethernet LAN (RJ45) ports: 1
DisplayPort version: 1.4
DisplayPorts quantity: 1

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
