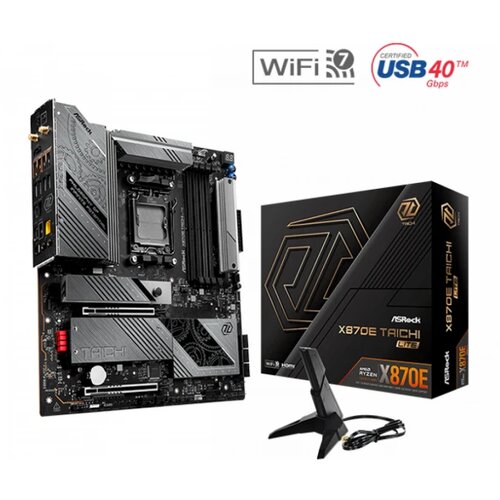

AsRock Motherboard - X870E Taichi Lite

Processor
Compatible processor series: AMD Ryzen 7000 Series
Processor manufacturer: AMD
Maximum number of SMP processors: 1
Processor socket: Socket AM5

Features
Motherboard form factor: Extended ATX
Audio output channels: 5.1 channels
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset family: AMD
Audio chip: Realtek ALC4082
Motherboard chipset: AMD X870E
Operating system architecture: 64bit

Memory
Memory slots type: DIMM
Memory channels: Dualchannel
Unbuffered memory: Yes
Number of memory slots: 4
Supported memory types: DDR5SDRAM
Maximum internal memory: 256 GB

Weight & dimensions
Depth: 267 mm
Width: 305 mm

Network
Ethernet LAN: Yes
WiFi standards: 802.11b, WiFi 5 (802.11ac), WiFi 7 (802.11be), 802.11a, 802.11g, WiFi 6E (802.11ax), WiFi 4 (802.11n)
Ethernet interface type: 5 Gigabit Ethernet
Bluetooth version: 5.4
Top WiFi standard: WiFi 7 (802.11be)
LAN controller: Realtek RTL8126
Bluetooth: Yes
WiFi: Yes

Internal I/O
Number of SATA III connectors: 4
CPU fan connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel audio connector: Yes
ATX Power connector (24pin): Yes

BIOS
BIOS type: UEFI AMI

Storage controllers
Supported storage drive interfaces: Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)

Rear panel I/O ports
Number of WiFi antenna ports: 2
Number of USB 2.0 TypeA ports: 2
USB 3.2 Gen 2x2 TypeC ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 3
Lineout: Yes
Ethernet LAN (RJ45) ports: 1
Clear CMOS button: Yes
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 5
HDMI ports quantity: 1
Microphone in: Yes
S/PDIF out port: Yes

Expansion slots
PCI Express x16 (Gen 5.x) slots: 2
