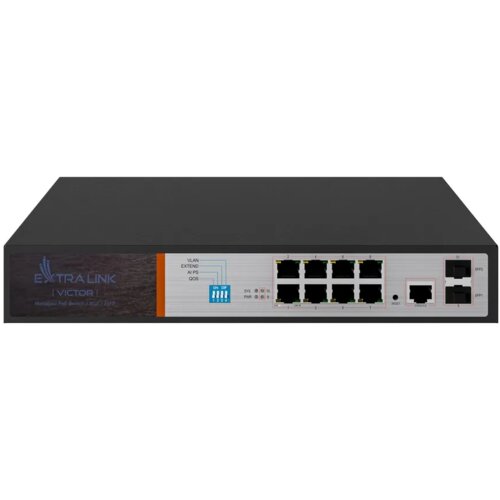

Extralink VICTOR | PoE Switch | 8x Gigabit PoE

Design
Stackable: Yes
DIN rail mounting: No
Form factor: 1U
Rack mounting: Yes
Redundant fans support: No
Number of fans: 1 fan(s)
Product colour: Black
LED indicators: System, Activity, Power, PoE, Link
Reset button: Yes

Power
Redundant power supply (RPS) support: No
Power source: AC
Power supply included: Yes
AC input frequency: 50 60 Hz
AC input voltage: 100 240 V

Security
MAC address entries: Static MAC address entries, Dynamic MAC address entries
SSH/SSL support: Yes
Loop protection: Yes
IGMP snooping: Yes
DHCP features: DHCP snooping
Access Control List (ACL): Yes

Management features
Configuring Location Settings (CLI): Yes
Quality of Service (QoS) support: Yes
Switch type: Managed
Switch layer: L2/L4
Webbased management: Yes

Weight & dimensions
Width: 285 mm
Height: 44 mm
Depth: 180 mm

Network
Autonegotiation: Yes
IP routing: Yes
Autosensing: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Number of VLANs: 4096
Full duplex: Yes
10G support: No
Networking standards: IEEE 802.3ad, IEEE 802.1s, IEEE 802.3x, IEEE 802.1w, IEEE 802.3i, IEEE 802.1D, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Packaging data
Package width: 290 mm
Package depth: 185 mm
Package type: Box
Package height: 49 mm

Packaging content
Cables included: DC
User guide: Yes

Ports & interfaces
Gigabit Ethernet (copper) ports quantity: 8
Console port: RJ45
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ45 Ethernet ports quantity: 8
SFP module slots quantity: 2

Logistics data
Minimum order quantity: 1 pc(s)

Data transmission
Storeandforward: Yes
Forwarding rate: 14.88 Mpps
Switching capacity: 20 Gbit/s
MAC address table: 8000 entries
Jumbo frames support: Yes

Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) pass through: No
Power over Ethernet (PoE) type supported: Active PoE
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 8
Total Power over Ethernet (PoE) budget: 150 W
Power over Ethernet (PoE) voltage: 48 V

Multicast features
Multicast support: Yes
