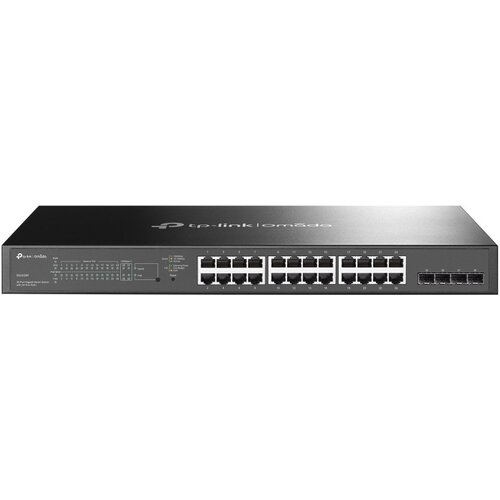

Tp-link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+

Certification: CE, FCC, RoHS

Design
Form factor: 1U
Rack mounting: Yes
Number of fans: 2 fan(s)
Product colour: Black

Power
Power consumption (max): 301.1 W
Power source: AC
AC input frequency: 50/60 Hz
Power supply included: Yes
AC input voltage: 100 240 V

Security
DHCP features: DHCP snooping, DHCP server, DHCP client, DHCP relay, DHCPv6 client
IGMP snooping: Yes
Security algorithms: SSL/TLS, SNMPv2, HTTPS, SSH, SNMP, SSH2, SNMPv3
IPMACPort binding: Yes
Authentication type: RADIUS
SSH/SSL support: Yes
Access Control List (ACL): Yes
Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)
BPDU filtering/protection: Yes

Operational conditions
Operating temperature (TT): 0 50 C
Storage temperature (TT): 40 70 C
Storage relative humidity (HH): 5 90%
Operating relative humidity (HH): 10 90%
Heat dissipation: 1052.94 BTU/h

Management features
Quality of Service (QoS) support: Yes
Webbased management: Yes
MIB support: Y
Switch layer: L2/L2+
System event log: Yes
Switch type: Managed
ARP inspection: Yes

Weight & dimensions
Depth: 220 mm
Width: 440 mm
Height: 44 mm

Network
VLAN support: Yes
Copper ethernet cabling technology: 10BASET, 1000BASET
10G support: No
Number of VLANs: 4000
Networking standards: IEEE 802.3i, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1D, IEEE 802.3z, IEEE 802.1p, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.1x, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.3u
Virtual LAN features: Voice VLAN, MAC addressbased VLAN, Protocolbased VLAN
Cable types supported: Cat4, Cat3, Cat5, Cat5e
Port mirroring: Yes
Rate limiting: Yes
Flow control support: Yes
Spanning tree protocol: Yes
Broadcast storm control: Yes
Link aggregation: Yes

Performance
Firmware upgradeable: Yes

Packaging data
User guide: Yes
Cables included: AC
Rack mount kit: Yes

Protocols
Management protocols: SNMPv1/v2c/v3, SNTP

Ports & interfaces
Basic switching RJ45 Ethernet ports quantity: 24
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
Gigabit Ethernet (copper) ports quantity: 24

Data transmission
Switching capacity: 56 Gbit/s
Packet buffer memory: 4.1 MB
MAC address table: 8000 entries
Jumbo frames support: Yes
Forwarding rate: 41.66 Mpps
Number of queues: 8
Jumbo frames: 9000

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 250 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet plus (PoE+) ports quantity: 24

Multicast features
Multicast support: Yes

Optical fiber
Fiber ethernet cabling technology: 1000BASEX
