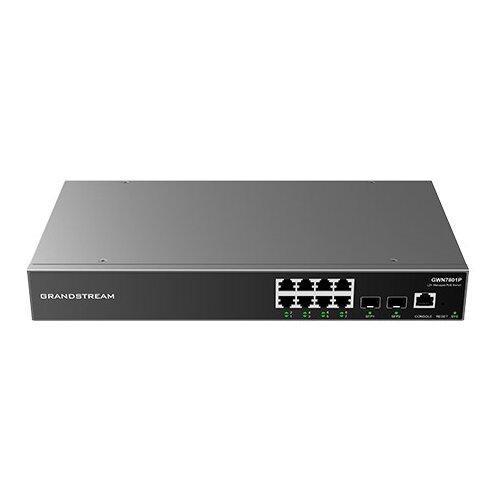

Grandstream GWN 7801 8GE 2SFP manageable switch L2+

Design
Product colour: Black
Housing material: Metal
Rack mounting: No
LED indicators: Yes

Power
AC input voltage: 100 240 V
AC input frequency: 50/60 Hz

Security
MAC address filtering: Yes
Security algorithms: HTTPS, SSH, Telnet
IP source protection: Yes
Cable lock slot: Yes
Port isolation: Yes
Broadcast storm control: Yes
DHCP features: DHCP snooping, DHCP server
IPMACPort binding: Yes
ARP inspection: Yes
BPDU filtering/protection: Yes
Authentication: Portbased authentication
Authentication type: AAA, RADIUS, TACACS+

Operational conditions
Operating temperature (TT): 0 45 C

Management features
Webbased management: Yes
Quality of Service (QoS) support: Yes
Switch layer: L2+
System event log: Yes
Switch type: Managed

Weight & dimensions
Width: 300 mm
Weight: 1.8 kg
Depth: 175 mm
Height: 44 mm

Network
Connection aggregator number of groups: 8
Networking standards: IEEE 802.3p, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IPv4, IEEE 802.3at, IEEE 802.3i, IEEE 802.1s, IEEE 802.1D, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IPv6, IEEE 802.1w, IEEE 802.3u
10G support: No
VLAN support: Yes
Spanning tree protocol number of instances: 16 for STP/RSTP/MSTP
Port mirroring: Yes
Spanning tree protocol: Yes
Link aggregation: Yes
Flow control support: Yes
Number of VLANs: 4000

Performance
Additional functions: Syslog, alarms
Backup and restore: Yes
CPU and memory monitoring: Yes
Firmware upgradeable: Yes
Diagnostics: Ping, Traceroute, UDLD(TBD), Copper wire test

Protocols
Checklist types (ACL): IPV4, IPV6
Automatic packet detection (type): Voice, Video, RTP, SIP, other delaysensitive
Priority mapping: Yes
Maximum number of rules (ACL): 1500
Automatic packet detection and prioritisation: Yes
Supported network protocols: RMON, LLDP, LLDPMED
Queue scheduling: Yes (SP, WRR, WFQ, SPWRR, SPWFQ)
Access Control List (ACL): Yes
Traffic shaping: Yes
Management protocols: SNMP, Telnet

Ports & interfaces
Fiber optic connector: SFP
Basic switching RJ45 Ethernet ports quantity: 8
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Fiber ports quantity: 8
Console port: RJ45
Installed SFP modules quantity: 2

Data transmission
Forwarding mode: Storage and transfer
Switching capacity: 160 Gbit/s
Packet forwarding rate: 14.88 million per second
Jumbo frames support: Yes
MAC address table: 8000 entries
Throughput: 80 Gbps

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Multicast features
Multicast MAC address table: 512 entries
Multicast support: Yes
