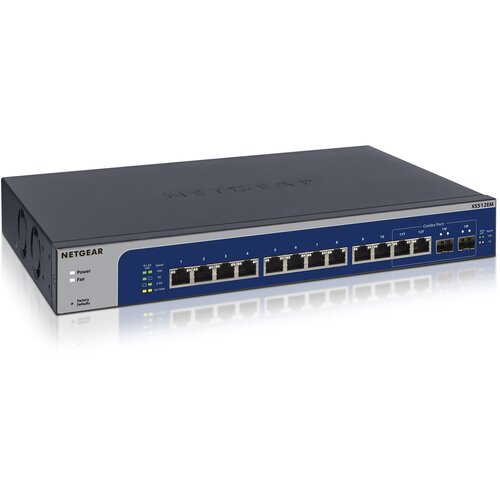

Netgear XS512EM Managed L2 10G Ethernet (100/1000/10000) 1U Blue, Grey

Certification: 47 CFR FCC, ICES003:2016, ANSI C63.4:2014, EN55032:2012+AC:2013, EN 55024:2010, EN 6100032:2014, EN 610033:2013, AS/NZS CISPR 32:2013, VCCICISPR32:2016, CNS 13438, IEC 609501:2005(ed.2) + A1:2009 + A2:2013, UL 609501, EN 609501: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC 609501:2005 (ed.2)+A1:2009+A2:2013, AS/NZS 60950.1:2015 CNS143361

Design
Product colour: Grey, Blue
Rack mounting: Yes
Form factor: 1U
Number of fans: 2 fan(s)
LED indicators: Yes

Power
AC input frequency: 50 60 Hz
AC input voltage: 100 240 V
Input current: 2 A

Security
DHCP features: DHCP client
IGMP snooping: Yes
MAC address filtering: Yes

Operational conditions
Storage temperature (TT): 20 70 C
Operating temperature (TT): 0 50 C
Heat dissipation: 261.38 BTU/h
Operating relative humidity (HH): 0 90%
Storage relative humidity (HH): 0 95%

Management features
Quality of Service (QoS) support: Yes
Switch layer: L2
Switch type: Managed

Weight & dimensions
Depth: 204 mm
Weight: 2.51 kg
Width: 328 mm
Height: 43 mm

Network
Number of VLANs: 64
10G support: Yes
Virtual LAN features: Portbased VLAN
VLAN support: Yes
Broadcast storm control: Yes
Networking standards: IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3az, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3an, IEEE 802.3u

Performance
Mean time between failures (MTBF): 1113477 h

Ports & interfaces
Power connector: DCin jack
Basic switching RJ45 Ethernet ports quantity: 12
SFP+ module slots quantity: 2
Basic switching RJ45 Ethernet ports type: 10G Ethernet (100/1000/10000)

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
MAC address table: 32000 entries
Packet buffer memory: 3 MB
Switching capacity: 240 Gbit/s
Jumbo frames support: Yes
Storeandforward: Yes
Jumbo frames: 9000

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Sustainability
Sustainability certificates: ENERGY STAR
