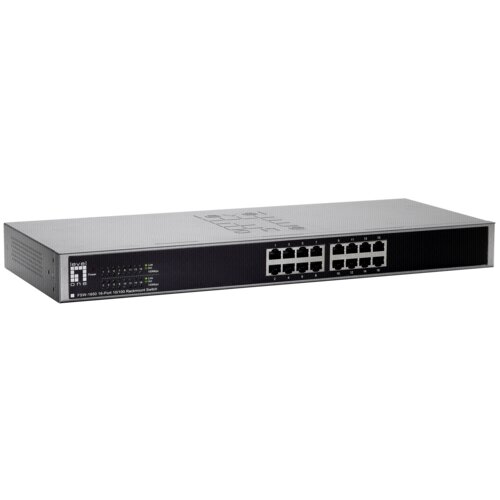

Level One FSW-1650 19 16 Port 10/100Mbps Switch

Level One FSW1650

16Port Fast Ethernet Switch

Features:

• Provides 16 Fast Ethernet port connections
• Supports a total back plane of up to 3.2Gbps
• Wirespeed and nonblocking forwarding rate
• Support IEEE 802.1P QoS (WRR 8:1)
• Supports Autonegotiation on all ports
• Storeandforward switching for errorfree transmission
• Supports fullduplex IEEE802.3x flow control
• Accessory kit for mounting into a 19€ server rack
• Internal power supply
• Power save up to 16% compare to Non Green Switch with similiar funtions

Product Overview

The FSW1650 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.

Advanced Networking Features

The LevelOne FSW1650 is a wirespeed, nonblocking 16 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 3.2Gbps backplane throughput, asymmetrical flowcontrol support for fullduplex network connectivity, autonegotiation and AutoMDIX.

The 16port Fast Ethernet Switch utilizes packetstore and forwarding switching for errorfree data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss.

Compact Design

The FSW1650 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19inch server rack or cabinet by using the included rackmounting accessory kit.

Quick Configuration and Easy Maintenance

The LevelOne FSW1650 does not require any software configuration. It is PlugandPlay enabled for quick setup and immediate use within the Local Area Network. The 16 port Faster Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network troubleshooting.
