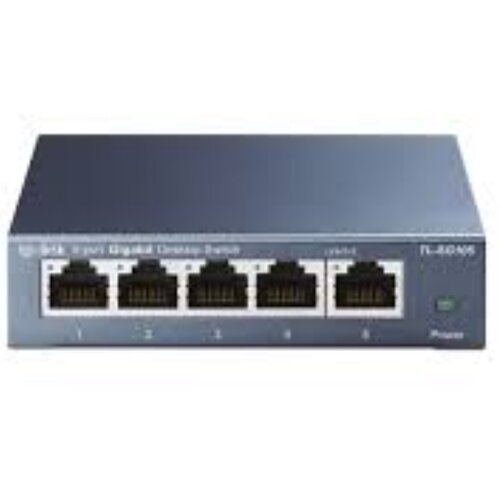

Switch 5-Port 10/100/1000Mbps Desktop Network Switch

Certification: CE, FCC, RoHS

Design
LED indicators: Yes
Product colour: Black

Power
Input current: 0.6 A
Power supply included: Yes
Input voltage: 9 V
Power source: DC
Power consumption (max): 2.3 W

Security
IGMP snooping: Yes

Operational conditions
Heat dissipation: 7.83 BTU/h
Operating relative humidity (HH): 10 90%
Storage relative humidity (HH): 5 90%
Operating temperature (TT): 0 40 C
Storage temperature (TT): 40 70 C

Management features
Switch type: Unmanaged
Quality of Service (QoS) support: Yes

Weight & dimensions
Width: 100 mm
Height: 25 mm
Depth: 98 mm

Network
Networking standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p
10G support: No
Auto MDI/MDIX: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Full duplex: Yes
Flow control support: Yes
Autonegotiation: Yes

Packaging data
Rack mount kit: Yes
Package depth: 128 mm
Package type: Box
Package weight: 370 g
User guide: Yes
Package height: 92 mm
Package width: 125 mm

Protocols
Switching protocols: CSMA/CD

Ports & interfaces
Gigabit Ethernet (copper) ports quantity: 5
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DCin jack
Basic switching RJ45 Ethernet ports quantity: 5

Other features
Connectivity technology: Wired
Power LED: Yes
Ethernet LAN: Yes
WiFi: No

Data transmission
Jumbo frames support: Yes
Maximum data transfer rate: 2 Gbit/s
Jumbo frames: 16000
Storeandforward: Yes
MAC address table: 2000 entries
Forwarding rate: 7.4 Mpps
Packet buffer memory: 1 MB
Supported data transfer rates: 10/100/1000Mbps
Switching capacity: 10 Gbit/s

Power over Ethernet (PoE)
Power over Ethernet (PoE): No
