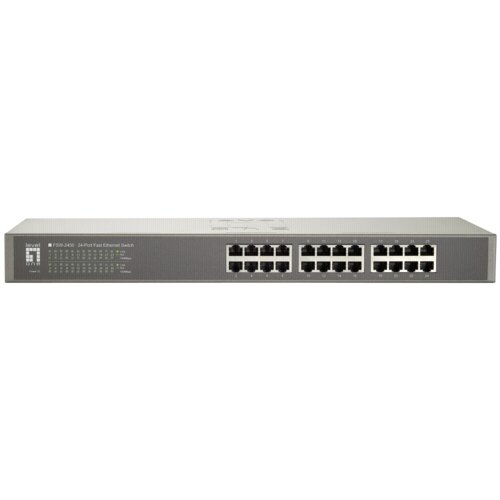

Level One FSW-2450 19 24-Port 10/100Mbps Switch

Level One FSW2450

24Port Fast Ethernet Switch

• Provides 24 Fast Ethernet port connections
• Supports a total backplane of up to 4.8Gbps
• Wirespeed and nonblocking forwarding rate
• Support IEEE 802.1P QoS (WRR 8:1)
• Supports Autonegotiation on all ports
• Storeandforward switching for errorfree transmission
• Supports fullduplex IEEE802.3x flow control
• Accessory kit for mounting into a 19" server rack
• Internal power supply

Product Overview

The FSW2450 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.

Advanced Networking Features

The LevelOne FSW2450 is a wirespeed, nonblocking 24 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 4.8Gbps backplane throughput, asymmetrical flowcontrol support for fullduplex network connectivity, autonegotiation and AutoMDIX.

The 24port Fast Ethernet Switch utilizes packet storeand forwarding switching for errorfree data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss.

Compact Design

The FSW2450 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19inch server rack or cabinet by using the included rackmounting accessory kit.

Quick Configuration and Easy Maintenance

The LevelOne FSW2450 does not require any software configuration. It is PlugandPlay enabled for quick setup and immediate use within the Local Area Network. The 24 port Fast Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network troubleshooting.
