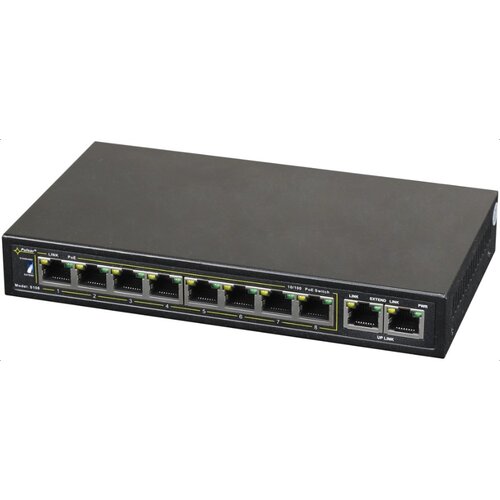

Pulsar S108 network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Certification: CE, RoHS, REACH

Design
LED indicators: Yes
Product colour: Black

Power
DC input voltage: 52 V
Input current: 2.3 A
AC input voltage: 230 V

Operational conditions
Operating temperature (TT): 10 40 C
Storage relative humidity (HH): 20 60%
Operating relative humidity (HH): 5 90%

Weight & dimensions
Weight: 1.2 kg
Width: 190 mm
Depth: 105 mm
Height: 28 mm

Network
MAC address autolearning supported: Yes
VLAN support: Yes
Networking standards: IEEE 802.3u, IEEE 802.3at, IEEE 802.3, IEEE 802.3af, IEEE 802.3x
MAC address autoaging supported: Yes

Packaging data
Package weight: 1.4 kg

Ports & interfaces
Basic switching RJ45 Ethernet ports quantity: 10
Basic switching RJ45 Ethernet ports type: Fast Ethernet (10/100)

Data transmission
Storeandforward: Yes
MAC address table: 1000 entries

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 96 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE) type supported: PoE+
