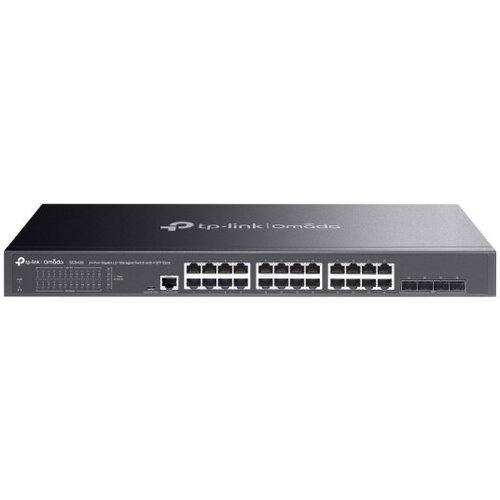

Tp-link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots
226,30 €
Design Product colour: Black Rack mounting: Yes LED indicators: Yes Form factor: 1U Power AC input voltage: 100 240 V AC input frequency: 50/60 Hz Power supply included: No Power consumption (max): 20.6 W Power source: AC Security SSH/SSL support: Yes IGMP snooping: Yes Authentication: MACbased authentication, Portbased authentication Access Control List (ACL): Yes Loop protection: Yes DHCP features: DHCPv6 client, DHCP server, DHCP client, DHCP relay, DHCPv6 snooping, DHCP snooping Static port
Brend:Tp-link
- Na zalihama
Tp-link Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots
Trenutno najbolja ponuda:
226,30 €u Tia mobiteli
Slični proizvodi iz Switchevi
Opis i karakteristike
Design
Product colour: Black
Rack mounting: Yes
LED indicators: Yes
Form factor: 1U
Power
AC input voltage: 100 240 V
AC input frequency: 50/60 Hz
Power supply included: No
Power consumption (max): 20.6 W
Power source: AC
Security
SSH/SSL support: Yes
IGMP snooping: Yes
Authentication: MACbased authentication, Portbased authentication
Access Control List (ACL): Yes
Loop protection: Yes
DHCP features: DHCPv6 client, DHCP server, DHCP client, DHCP relay, DHCPv6 snooping, DHCP snooping
Static port security: Yes
MAC address filtering: Yes
IPMACPort binding: Yes
BPDU filtering/protection: Yes
Authentication type: AAA, RADIUS, TACACS+
Operational conditions
Storage temperature (TT): 40 70 C
Operating temperature (TT): 0 45 C
Heat dissipation: 70.3 BTU/h
Operating relative humidity (HH): 10 90%
Storage relative humidity (HH): 5 90%
Management features
Quality of Service (QoS) support: Yes
System event log: Yes
Switch layer: L2/L3
Switch type: Managed
Webbased management: Yes
MIB support: Yes
Configuring Location Settings (CLI): Yes
Cloudmanaged: Yes
ARP inspection: Yes
Weight & dimensions
Width: 440 mm
Depth: 180 mm
Height: 44 mm
Network
Flow control support: Yes
Number of VLANs: 4000
Ethernet LAN data rates: 10,100,1000 Mbit/s
10G support: No
VLAN support: Yes
Broadcast storm control: Yes
Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, IEEE 802.3i
Port mirroring: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Virtual LAN features: Protocolbased VLAN, Private VLAN, Voice VLAN, Tagged VLAN
Link aggregation: Yes
IP routing: Yes
Policybased routing: Yes
Headofline (HOL) blocking: Yes
IPv6 routes: 48
IPv4 routes: 48
Packaging data
Quick start guide: Yes
Cables included: LAN (RJ45)
Protocols
Management protocols: SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP): Yes
IPv4 & IPv6 features: IPv6 ping, IPv6 tracert, IPv6 Telnet, IPv4/IPv6 accesscontrol list (ACL)
Ports & interfaces
Basic switching RJ45 Ethernet ports quantity: 24
SFP module slots quantity: 4
Console port: RJ45/MicroUSB
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
Data transmission
Jumbo frames support: Yes
Storeandforward: Yes
MAC address table: 16000 entries
Switching capacity: 56 Gbit/s
Packet buffer memory: 12 MB
Forwarding rate: 41.66 Mpps
Static route: Yes
Number of static routes: 48
Jumbo frames: 9000
Power over Ethernet (PoE)
Power over Ethernet (PoE): No
Multicast features
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
