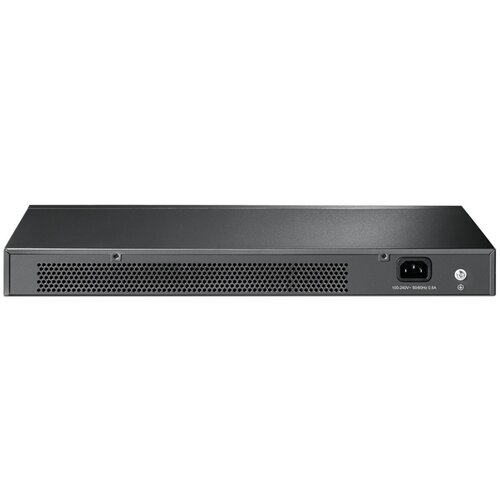

Tp-link 24-Port Gigabit Rackmount Network Switch

Certification: FCC, CE, RoHS

Design
Product colour: Black
Form factor: 1U
LED indicators: Yes
Rack mounting: Yes

Power
Power source: AC
AC input frequency: 50 60 Hz
AC input voltage: 100 240 V
Power consumption (max): 13.62 W
Power supply included: Yes

Operational conditions
Storage relative humidity (HH): 5 90%
Storage temperature (TT): 40 70 C
Operating relative humidity (HH): 10 90%
Operating temperature (TT): 0 40 C, 32 104 F
Heat dissipation: 46.44 BTU/h

Management features
Quality of Service (QoS) support: Yes
Switch type: Unmanaged

Weight & dimensions
Depth: 180 mm
Height: 44 mm
Width: 440 mm

Network
Networking standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3i
Auto MDI/MDIX: Yes
Flow control support: Yes
Copper ethernet cabling technology: 100BASETX, 1000BASET, 10BASET
10G support: No
Autonegotiation: Yes
Full duplex: Yes
Half duplex: Yes

Packaging data
Package depth: 528 mm
User guide: Yes
Package weight: 2.13 kg
Package width: 250 mm
Package height: 80 mm
Cables included: AC
Rack mount kit: Yes

Protocols
Supported network protocols: CSMA/CD, TCP/IP

Ports & interfaces
Gigabit Ethernet (copper) ports quantity: 24
Basic switching RJ45 Ethernet ports quantity: 24
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Other features
Connectivity technology: Wired
Connectivity LEDs: Y
Bandwidth: 48 Gbit/s
Dimensions (W x D x H) (imperial): 439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7")

Data transmission
Forwarding rate: 35.7 Mpps
Switching capacity: 48 Gbit/s
Jumbo frames: 10000
Maximum data transfer rate: 1 Gbit/s
MAC address table: 8000 entries
Supported data transfer rates: 10/100/1000 Mbps
Storeandforward: Yes
Jumbo frames support: Yes
