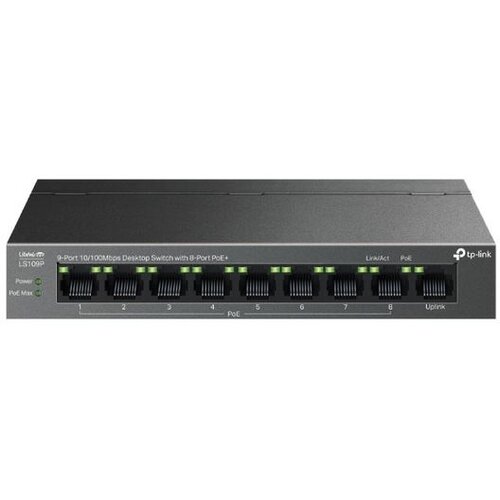

Tp-link LiteWave LS109P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Certification: CE, FCC, RoHS

Design
Product colour: Black
Wall mountable: Yes
LED indicators: Yes

Power
AC input frequency: 50 Hz
DC input voltage: 53.5 V
Input current: 1.31 A
Power source: DC/PoE
Power supply included: Yes
AC input voltage: 220 V
Power consumption (max): 73.24 W

Operational conditions
Operating temperature (TT): 0 40 C
Heat dissipation: 249 BTU/h
Storage relative humidity (HH): 5 90%
Operating relative humidity (HH): 10 90%
Storage temperature (TT): 40 70 C

Management features
Switch type: Unmanaged
Quality of Service (QoS) support: Yes

Weight & dimensions
Width: 171 mm
Height: 27 mm
Depth: 98 mm

Network
Networking standards: IEEE 802.3i, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Flow control support: Yes
Autonegotiation: Yes
Copper ethernet cabling technology: 100BASETX, 10BASET
Cable types supported: Cat5, Cat5e, Cat4, Cat3
10G support: No
Auto MDI/MDIX: Yes

Performance
Fanless: Yes

Packaging data
User guide: Yes
Package type: Box

Ports & interfaces
Basic switching RJ45 Ethernet ports type: Fast Ethernet (10/100)
Basic switching RJ45 Ethernet ports quantity: 9

Data transmission
MAC address table: 2000 entries
Switching capacity: 1.8 Gbit/s
Jumbo frames support: Yes
Forwarding rate: 1.3392 Mpps
Storeandforward: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
