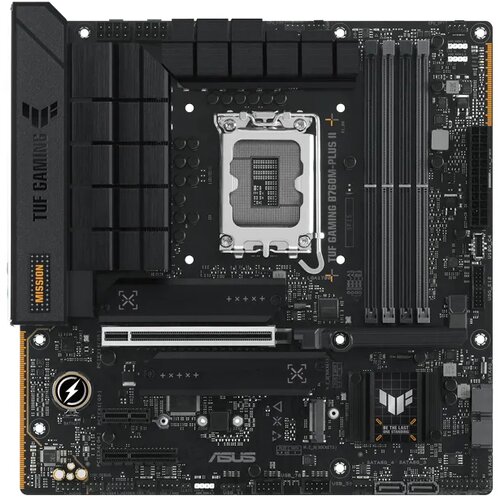

Asus TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX

Processor
Supported processor sockets: LGA 1700
Compatible processor series: Intel Core i3, Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Core i5, Intel Celeron
Processor manufacturer: Intel
Processor socket: LGA 1700

Graphics
Parallel processing technology support: Not supported

Features
Windows operating systems supported: Windows 11, Windows 10 x64
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Motherboard form factor: micro ATX

Memory
Memory channels: Dualchannel
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5SDRAM
Supported memory clock speed (max): 7800 MHz
Supported memory clock speeds: 6400 MHz, 5200, 7400, 6800, 5000, 6200, 6600, 7600, 6000, 7000, 7800 MHz, 5600, 7200 MHz, 5800, 5400, 4800
Maximum internal memory: 192 GB
Unbuffered memory: Yes

Weight & dimensions
Height: 50 mm
Depth: 244 mm
Width: 244 mm

Network
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
WiFi: No

Internal I/O
Number of chassis fan connectors: 3
12V power connector: Yes
EPS power connector (8pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
CPU fan connector: Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Thunderbolt headers: 1
Front panel audio connector: Yes
USB 2.0 connectors: 3
ATX Power connector (24pin): Yes

BIOS
BIOS type: UEFI AMI

Packaging data
Package height: 71 mm
Package width: 280 mm
Package depth: 265 mm
Package weight: 1.65 kg

Packaging content
Screws included: Yes
Cables included: SATA

Storage controllers
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID levels: 1, 10, 0, 5
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes

Rear panel I/O ports
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
Headphone outputs: 1
USB 3.2 Gen 2x2 TypeC ports quantity: 1
USB 2.0 ports quantity: 4
S/PDIF out port: Yes
Ethernet LAN (RJ45) ports: 1
DisplayPorts quantity: 1

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1

Other features
Weight: 982 g
