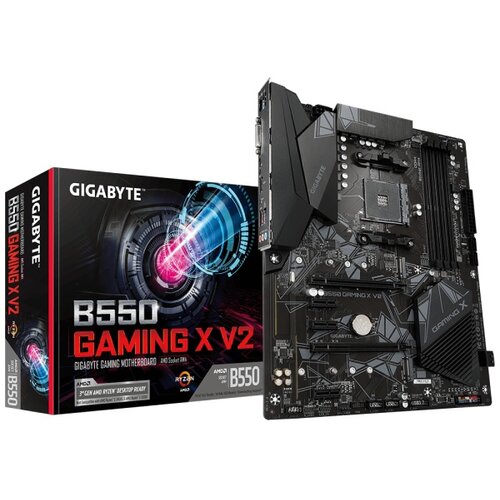

Gigabyte B550 Gaming X V2 Socket AM4 ATX AMD B550

Processor
Compatible processor series: 3rd Generation AMD Ryzen 9, 3rd Generation AMD Ryzen 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7
Processor manufacturer: AMD
Processor socket: Socket AM4

Graphics
Maximum graphics card memory: 16 MB
Parallel processing technology support: Not supported

Features
Motherboard chipset: AMD B550
Motherboard form factor: ATX
Audio chip: Realtek ALC887
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10 x64

Memory
Supported memory clock speeds: 2933, 3200 MHz, 2667, 2400, 2133
Maximum internal memory: 128 GB
Memory slots type: DIMM
Supported memory types: DDR4SDRAM
Memory channels: Dualchannel
Number of memory slots: 4

Weight & dimensions
Width: 305 mm
Depth: 244 mm

Network
Ethernet interface type: 100 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN: Yes
WiFi: No

Internal I/O
CPU fan connector: Yes
Front panel connector: Yes
USB 2.0 connectors: 2
TPM connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
RGB LED pin header: Yes
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24pin): Yes
12V power connector: Yes

BIOS
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI

Storage controllers
Supported storage drive types: HDD & SSD
RAID levels: 1, 10, 0
Supported storage drive interfaces: M.2, Serial ATA III

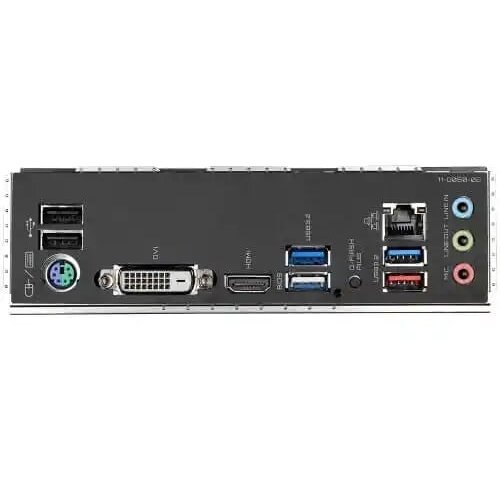

Rear panel I/O ports
PS/2 ports quantity: 1
HDMI ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 3
DVID ports quantity: 1
Ethernet LAN (RJ45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1

Expansion slots
PCI Express x1 (Gen 3.x) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
