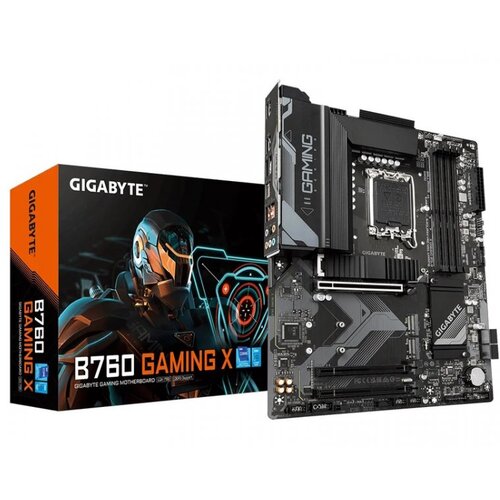

Gigabyte B760 GAMING X Motherboard - Supports Intel Core 14th Gen CPUs, 8+1+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2

Technical details
Warranty period: 3 year(s)

Processor
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Compatible processor series: Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Core i3, Intel Core i5, Intel Celeron
Maximum internal memory supported by processor: 192 GB
Processor socket: LGA 1700

Graphics
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
Parallel processing technology support: Not supported
DirectX version: 12.0

Features
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
PC health monitoring: Voltage, Water cooling, Temperature, Fan
Motherboard chipset: Intel B760 Express
Motherboard form factor: ATX
Product colour: Bronze
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Memory
Supported memory module capacities: 12GB, 48GB, 32GB, 8GB, 16GB, 1GB, 2GB, 4GB
Supported memory clock speeds: 6400, 6200, 6600, 6800, 7400, 6000, 5600, 7200, 7600, 7000, 5800, 5400, 5200, 4000, 4800
Unbuffered memory: Yes
Maximum internal memory: 192 GB
Memory channels: Dualchannel
Supported memory clock speed (max): 7600 MHz
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5SDRAM

Weight & dimensions
Height: 35 mm
Depth: 244 mm
Width: 305 mm

Network
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
WiFi: No

Internal I/O
ATX Power connector (24pin): Yes
S/PDIF out connector: Yes
Serial port headers: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
Number of SATA Express connectors: 4
USB 2.0 connectors: 2
Number of SATA III connectors: 4
CPU fan connector: Yes
EPS power connector (8pin): Yes
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
12V power connector: Yes

BIOS
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7

Packaging data
Package weight: 1.62 kg
Package width: 335 mm
Package height: 80 mm
Package depth: 270 mm
Bundled software: Norton Internet Security

Packaging content
Cables included: SATA
Batteries included: Yes

Storage controllers
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID levels: 0, 10, 5, 1
RAID support: Yes
Number of HDDs supported: 4
Number of storage drives supported: 7

Rear panel I/O ports
USB 2.0 ports quantity: 5
USB connector type: USB TypeA, USB TypeC
Ethernet LAN (RJ45) ports: 1
DisplayPort version: 1.2
DisplayPorts quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeC ports quantity: 1
Microphone in: Yes
HDMI version: 2.0
Headphone outputs: 6

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x16 slots: 3

Battery
Number of battery cells: 1
Battery type: CR2032
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery weight: 3 g
Lithium weight per battery: 0.07 g

Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
