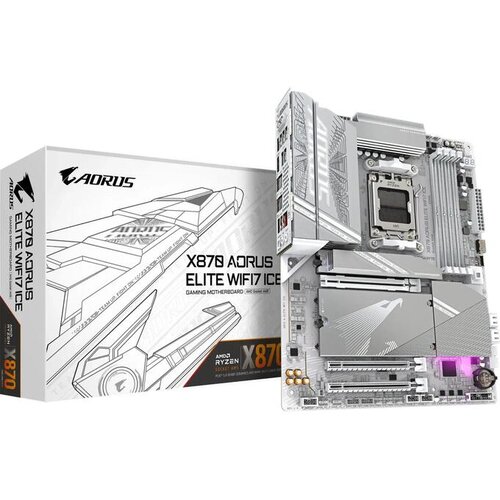

Gigabyte X870 AORUS ELITE WIFI7 ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4

Technical details
Warranty period: 3 year(s)

Processor
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Maximum internal memory supported by processor: 256 GB
Compatible processor series: AMD Ryzen 7
Processor socket: Socket AM5

Graphics
Onboard graphics card: No
DirectX version: 12.0

Features
Product colour: White
PC health monitoring: Fan, Temperature, Voltage
Motherboard form factor: ATX
Motherboard chipset: AMD X870
Audio chip: Realtek ALC1220
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64

Memory
Supported memory module capacities: 16GB, 32GB, 8GB, 24GB, 1GB, 2GB, 4GB
Supported memory clock speeds: 6800, 6400, 6000, 5200, 7000, 7600, 7800, 6200, 6666, 8000 MHz, 4400, 6600, 4800, 5600, 7200
Memory channels: Dualchannel
Maximum internal memory: 256 GB
Supported memory types: DDR5SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Supported memory clock speed (max): 8000 MHz

Weight & dimensions
Width: 305 mm
Height: 35 mm
Depth: 244 mm

Network
WiFi standards: WiFi 7 (802.11be)
Top WiFi standard: WiFi 7 (802.11be)
Ethernet interface type: 2.5 Gigabit Ethernet
WiFi: Yes
Ethernet LAN: Yes
WLAN controller model: MediaTek MT7925

Internal I/O
Number of SATA III connectors: 4
Total number of SATA connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
EPS power connector (8pin): Yes
USB 2.0 connectors: 2
ATX Power connector (24pin): Yes
USB 3.2 Gen 2x2 connectors: 1
12V power connector: Yes

BIOS
Clear CMOS jumper: Yes
Clear CMOS button: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7

Packaging data
Package depth: 270 mm
Package height: 80 mm
Package weight: 2.74 kg
Package width: 335 mm
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content
Batteries included: Yes

Storage controllers
RAID levels: 10, 0, 1
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
Number of storage drives supported: 4
Number of HDDs supported: 8

Rear panel I/O ports
Ethernet LAN (RJ45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 4
DisplayPorts quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 3
USB 2.0 ports quantity: 2
S/PDIF out port: Yes
Microphone in: Yes
USB4 Gen 2x2 ports quantity: 2

Expansion slots
Number of M.2 (M) slots: 4
PCI Express x4 slots: 2
PCI Express x16 (Gen 5.x) slots: 1

Battery
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery type: CR2032
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery weight: 3 g

Other features
Weight: 2.4 kg

Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
