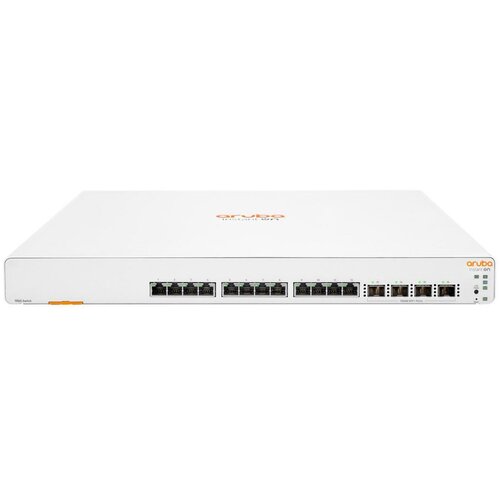

High Peak HPE Aruba Networking Aruba Instant On 1960 12XGT 4SFP+ Managed L2+ 10G Ethernet (100/1000/10000) 1U White

Design
Form factor: 1U
Rack mounting: Yes
Product colour: White
Stackable: Yes

Power
AC input frequency: 50 60 Hz
Power supply included: Yes
Power source: AC
AC input voltage: 100 240 V
Power consumption (max): 160 W

Security
IGMP snooping: Yes
DHCP features: DHCP snooping
Authentication type: RADIUS
SSH/SSL support: Yes
Authentication: Portbased authentication
Access Control List (ACL): Yes

Operational conditions
Operating temperature (TT): 0 40 C
Storage relative humidity (HH): 15 90%
Storage temperature (TT): 40 70 C
Operating relative humidity (HH): 15 95%

Management features
Quality of Service (QoS) support: Yes
Webbased management: Yes
Cloudmanaged: Yes
Switch layer: L2+
Switch type: Managed

Weight & dimensions
Width: 350 mm
Height: 44 mm
Weight: 4.31 kg
Depth: 443 mm

Network
Networking standards: IEEE 802.3az, IEEE 802.3u, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1x, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1D, IEEE 802.3z, IEEE 802.1ab
Full duplex: Yes
VLAN support: Yes
Auto MDI/MDIX: Yes
10G support: Yes
Port mirroring: Yes
Autosensing: Yes
Flow control support: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Link aggregation: Yes

Performance
Processor frequency: 2000 MHz
Processor model: ARM CortexA9
Builtin processor: Yes
Physical stacking (units): 4

Protocols
IPv6 FIB entries: 512
IPv4 & IPv6 features: IPv4/IPv6 accesscontrol list (ACL)
IPv4 FIB entries: 512

Ports & interfaces
Basic switching RJ45 Ethernet ports type: 10G Ethernet (100/1000/10000)
Basic switching RJ45 Ethernet ports quantity: 12
SFP+ module slots quantity: 4

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Switching capacity: 320 Gbit/s
Jumbo frames support: Yes
Latency (10100 Mbps): 7.4 s
Latency (10 Gbps): 1.1 s
Latency (1 Gbps): 4.2 s
MAC address table: 16000 entries
Throughput: 238 Mpps

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Multicast features
Multicast support: Yes
