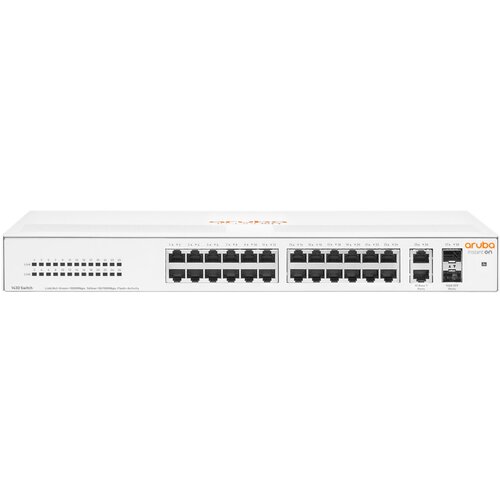

High Peak HPE Aruba Networking Aruba Instant On 1430 26G 2SFP Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U

Design
Form factor: 1U
Rack mounting: Yes

Power
AC input frequency: 50 60 Hz
AC input voltage: 100 240 V
Power supply included: Yes
Power source: AC
Power consumption (max): 16.4 W

Operational conditions
Operating temperature (TT): 0 40 C
Storage temperature (TT): 40 70 C
Storage relative humidity (HH): 15 90%
Operating relative humidity (HH): 15 95%

Management features
Quality of Service (QoS) support: Yes
Switch layer: L2
Switch type: Unmanaged

Weight & dimensions
Width: 225 mm
Weight: 2.27 kg
Depth: 388 mm
Height: 44 mm

Network
Networking standards: IEEE 802.3i, IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3, IEEE 802.3ab, IEEE 802.3z
Full duplex: Yes
Autosensing: Yes
Flow control support: Yes
10G support: No

Performance
Flash memory: 32 MB

Ports & interfaces
Basic switching RJ45 Ethernet ports quantity: 26
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2

Data transmission
Switching capacity: 56 Gbit/s
Latency (10100 Mbps): 5.21 s
Latency (1 Gbps): 2.9 s
Throughput: 41.68 Mpps
Jumbo frames support: Yes
MAC address table: 16384 entries
Packet buffer memory: 12 MB

Power over Ethernet (PoE)
Power over Ethernet (PoE): No
