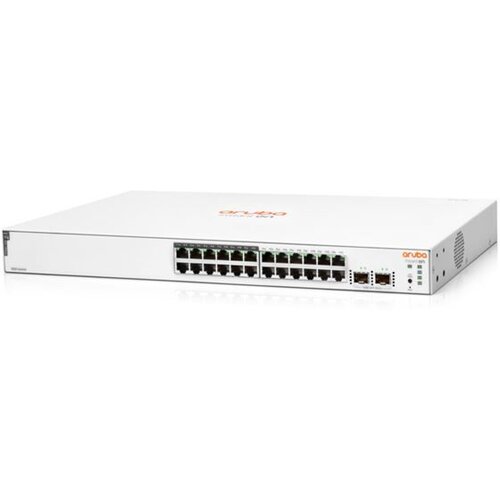

Hp HPE Aruba Networking Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

Design
Rack mounting: Yes
Form factor: 1U

Power
AC input voltage: 100 240 V
AC input frequency: 50 60 Hz
Power source: AC
Power supply included: Yes

Security
DHCP features: DHCP client
SSH/SSL support: Yes
IGMP snooping: Yes

Operational conditions
Storage temperature (TT): 40 70 C
Operating temperature (TT): 0 40 C
Storage relative humidity (HH): 15 95%
Operating relative humidity (HH): 15 95%

Management features
Webbased management: Yes
Switch layer: L2
Quality of Service (QoS) support: Yes
Cloudmanaged: Yes
Switch type: Managed

Weight & dimensions
Weight: 3.47 kg
Depth: 245 mm
Width: 442.5 mm
Height: 43.9 mm

Network
Networking standards: IEEE 802.1D, IEEE 802.3z, IEEE 802.3at, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p
Flow control support: Yes
Link aggregation: Yes
10G support: No
VLAN support: Yes
Autosensing: Yes
Port mirroring: Yes
Full duplex: Yes
Spanning tree protocol: Yes
Auto MDI/MDIX: Yes

Performance
Processor frequency: 800 MHz
Processor model: ARM CortexA9
Memory type: RDRAM
Flash memory: 256 MB
Internal memory: 512 MB
Builtin processor: Yes

Ports & interfaces
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ45 Ethernet ports quantity: 24
SFP module slots quantity: 2

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
MAC address table: 16000 entries
Switching capacity: 52 Gbit/s
Throughput: 38.68 Mpps
Latency (10100 Mbps): 5.2 s
Latency (1 Gbps): 2.8 s
Packet buffer memory: 1.5 MB
Jumbo frames support: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 195 W
