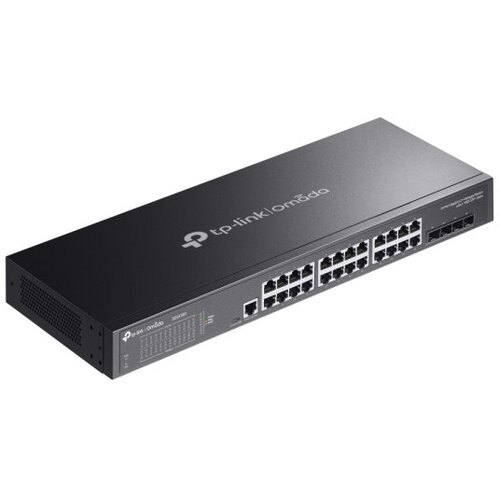

Lan Omada 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Design
Rack mounting: Yes
Product colour: Black
LED indicators: Yes
Form factor: 1U

Power
Power supply included: Yes
Power source: AC
AC input voltage: 100 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 23.6 W

Security
Authentication type: AAA, RADIUS, TACACS+
IPMACPort binding: Yes
BPDU filtering/protection: Yes
Authentication: Guest VLAN, MACbased authentication, Portbased authentication
SSH/SSL support: Yes
Access Control List (ACL): Yes
Loop protection: Yes
DHCP features: DHCP server, DHCPv6 snooping, DHCPv6 client, DHCP client, DHCP relay, DHCP snooping
IGMP snooping: Yes

Operational conditions
Heat dissipation: 80.52 BTU/h
Operating relative humidity (HH): 10 90%
Operating temperature (TT): 0 45 C
Storage temperature (TT): 40 70 C
Storage relative humidity (HH): 5 90%

Management features
ARP inspection: Yes
Cloudmanaged: Yes
Switch type: Managed
Switch layer: L2+/L3
System event log: Yes
MIB support: Yes
Quality of Service (QoS) support: Yes
Webbased management: Yes
Configuring Location Settings (CLI): Yes

Weight & dimensions
Height: 44 mm
Width: 440 mm
Depth: 180 mm

Network
Policybased routing: Yes
Active link detection: Yes
VLAN support: Yes
Headofline (HOL) blocking: Yes
IPv4 routes: 48
Number of VLANs: 4000
10G support: Yes
IPv6 routes: 48
Port mirroring: Yes
Spanning tree protocol: Yes
Link aggregation: Yes
Flow control support: Yes
Rate limiting: Yes
Broadcast storm control: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3z, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3i
Virtual LAN features: Protocolbased VLAN, Tagged VLAN, Voice VLAN, Private VLAN

Performance
Fanless: Yes

Packaging data
Cables included: LAN (RJ45)
Quick start guide: Yes

Protocols
IPv4 & IPv6 features: IPv6 ping, IPv6 tracert, IPv6 Telnet, IPv4/IPv6 accesscontrol list (ACL)
GARP VLAN Registration Protocol (GVRP): Yes
Management protocols: SNMPv1/v2c/v3, SNTP

Ports & interfaces
Basic switching RJ45 Ethernet ports quantity: 24
Power connector: ACin jack
SFP+ module slots quantity: 4
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Console port: RJ45/MicroUSB
Gigabit Ethernet (copper) ports quantity: 24

Data transmission
Number of static routes: 48
Switching capacity: 128 Gbit/s
Jumbo frames support: Yes
Packet buffer memory: 12 MB
Storeandforward: Yes
MAC address table: 16000 entries
Static route: Yes
Jumbo frames: 9000
Forwarding rate: 95.23 Mpps

Power over Ethernet (PoE)
Power over Ethernet (PoE): No

Multicast features
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
