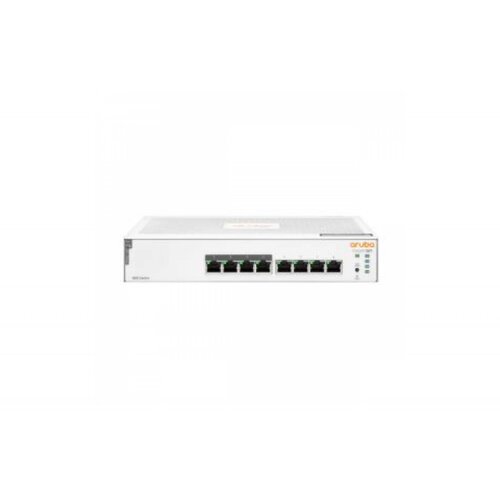

HP HPE Aruba Networking Aruba Instant On 1830 8G 4p Class4 PoE 65W Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

Design
Form factor: 1U
Rack mounting: Yes

Power
Power supply included: Yes
Power consumption (max): 83.67 W
AC input voltage: 100 240 V
AC input frequency: 50 60 Hz
Power source: AC

Security
IGMP snooping: Yes
DHCP features: DHCP client
SSH/SSL support: Yes

Operational conditions
Storage relative humidity (HH): 15 95%
Operating temperature (TT): 0 40 C
Operating relative humidity (HH): 15 95%
Storage temperature (TT): 40 70 C

Management features
Switch type: Managed
Switch layer: L2
Cloudmanaged: Yes
Webbased management: Yes
Quality of Service (QoS) support: Yes

Weight & dimensions
Weight: 1.54 kg
Height: 43.9 mm
Width: 245 mm
Depth: 195 mm

Network
Port mirroring: Yes
Flow control support: Yes
10G support: No
Link aggregation: Yes
Spanning tree protocol: Yes
Full duplex: Yes
Autosensing: Yes
VLAN support: Yes
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at, IEEE 802.3ad, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1D, IEEE 802.3z, IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab
Auto MDI/MDIX: Yes

Performance
Builtin processor: Yes
Internal memory: 512 MB
Memory type: SDRAM
Processor model: ARM CortexA9
Flash memory: 256 MB
Processor frequency: 800 MHz

Ports & interfaces
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ45 Ethernet ports quantity: 8

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Switching capacity: 16 Gbit/s
MAC address table: 8000 entries
Packet buffer memory: 1.5 MB
Jumbo frames support: Yes
Latency (1 Gbps): 2.8 s
Throughput: 11.9 Mpps
Latency (10100 Mbps): 5.2 s

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 65 W
Power over Ethernet (PoE): Yes
