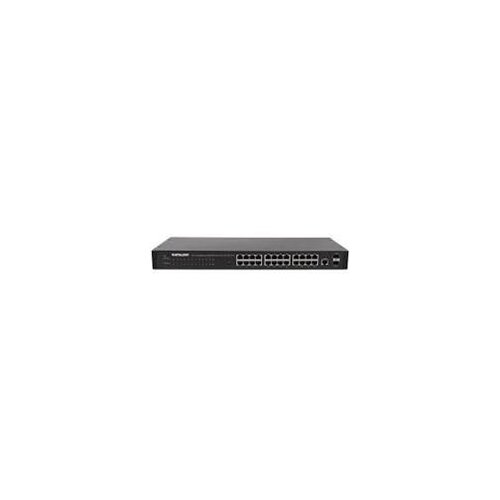

Intellinet 24-Port Network Switch, 24-Port (RJ45), Rackmount, Gigabit, 4 SFP, Ethernet Web-Smart, 10/100/1000 Mbit

Certification: FCC Class A, CE

Design
Form factor: 1U
LED indicators: Yes
Rack mounting: Yes
Product colour: Black
Housing material: Metal

Power
AC input frequency: 50 60 Hz
Power source: AC
AC input voltage: 100 240 V
Power consumption (max): 20 W

Security
IGMP snooping: Yes
Access Control List (ACL): Yes
Authentication: Portbased authentication

Operational conditions
Operating relative humidity (HH): 10 90%
Operating temperature (TT): 0 40 C
Storage temperature (TT): 40 70 C

Management features
Quality of Service (QoS) support: Yes
System event log: Yes
Switch type: Managed
Webbased management: Yes

Weight & dimensions
Depth: 205 mm
Width: 440 mm
Height: 44 mm
Weight: 2.2 kg

Network
Cable types supported: Cat5, Cat5e, Cat4, Cat3
Autonegotiation: Yes
VLAN support: Yes
Networking standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1D, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u
10G support: No
Rate limiting: Yes
Port mirroring: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Full duplex: Yes
Flow control support: Yes
Spanning tree protocol: Yes

Performance
Buffer size: 512 KB

Packaging data
Rack mount kit: Yes
Manual: Yes
Mounting brackets included: Yes
Cables included: AC

Ports & interfaces
SFP module slots quantity: 2
Basic switching RJ45 Ethernet ports quantity: 24
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
MAC address table: 8000 entries
Jumbo frames: 9216
Switching capacity: 52 Gbit/s
Storeandforward: Yes
Jumbo frames support: Yes
Forwarding rate: 1.488 Mpps

Multicast features
Multicast support: Yes
Number of multicast groups filtered: 8
