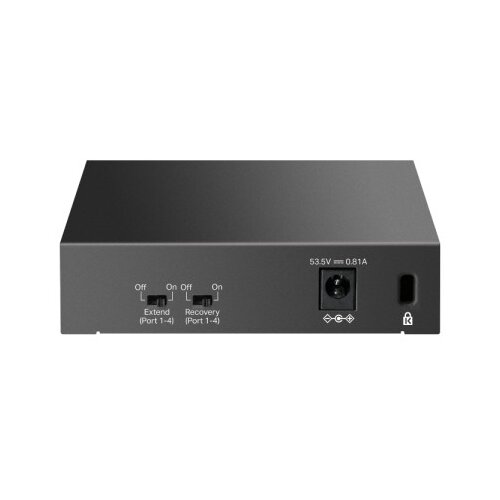

Lan LiteWave LS105P Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Certification: CE, FCC, RoHS

Design
Product colour: Black
LED indicators: Yes
Wall mountable: Yes

Power
AC input frequency: 50 Hz
Input current: 0.81 A
AC input voltage: 220 V
Power source: DC/PoE
Power consumption (max): 46.45 W
DC input voltage: 53.5 V
Power supply included: Yes

Operational conditions
Operating temperature (TT): 0 40 C
Storage temperature (TT): 40 70 C
Operating relative humidity (HH): 10 90%
Heat dissipation: 157.93 BTU/h
Storage relative humidity (HH): 5 90%

Management features
Switch type: Unmanaged
Quality of Service (QoS) support: Yes

Weight & dimensions
Width: 100 mm
Depth: 98 mm
Height: 25 mm

Network
Networking standards: IEEE 802.3af, IEEE 802.3x, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology: 10BASET, 100BASETX
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Flow control support: Yes
Auto MDI/MDIX: Yes
10G support: No
Autonegotiation: Yes

Performance
Fanless: Yes

Packaging data
Package type: Box
User guide: Yes

Ports & interfaces
Basic switching RJ45 Ethernet ports quantity: 5
Basic switching RJ45 Ethernet ports type: Fast Ethernet (10/100)

Data transmission
MAC address table: 2000 entries
Forwarding rate: 0.744 Mpps
Jumbo frames support: Yes
Storeandforward: Yes
Switching capacity: 1 Gbit/s

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 15.4 W
Power over Ethernet (PoE) ports quantity: 4
