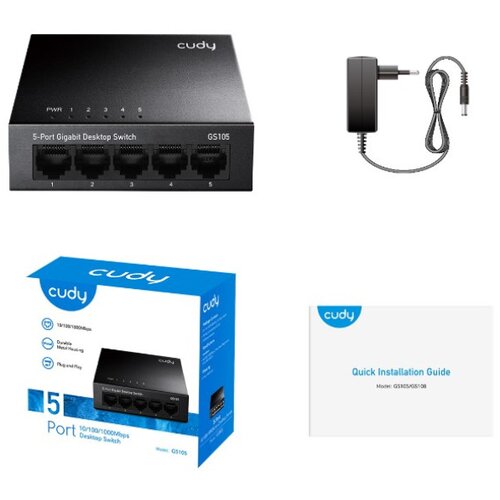

Cudy GS105 network switch Gigabit Ethernet (10/100/1000) Black

Design
LED indicators: Link, Loop, Power
Rack mounting: No
Product colour: Black

Power
AC input voltage: 100 240 V
Power source: AC/DC
Power supply included: Yes
DC input voltage: 5 V

Operational conditions
Operating altitude: 0 3048 m
Storage relative humidity (HH): 5 90%
Operating temperature (TT): 10 50 C
Operating relative humidity (HH): 10 90%
Storage temperature (TT): 40 70 C

Weight & dimensions
Depth: 70 mm
Width: 100 mm
Weight: 200 g
Height: 26 mm

Network
Half duplex: Yes
Networking standards: IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.3x
Cable types supported: Cat6e, Cat7e, Cat6, Cat8.1, Cat3, Cat5, Cat5e, Cat6+, Cat6a, Cat4, Cat8, Cat7
Full duplex: Yes
Auto MDI/MDIX: Yes
Flow control support: Yes
Autonegotiation: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
MAC address autoaging supported: Yes
Copper ethernet cabling technology: 100BASETX, 10BASET, 1000BASETX
VLAN support: Yes
MAC address autolearning supported: Yes

Performance
Mean time between failures (MTBF): 100000 h

Packaging data
Package weight: 400 g
Package depth: 120 mm
Package width: 175 mm
Manual: Yes
Package height: 63 mm
Cables included: DC
Package type: Box

Ports & interfaces
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ45 Ethernet ports quantity: 5

Logistics data
Products per master (outer) case: 40 pc(s)
Master (outer) case width: 505 mm
Master (outer) case length: 320 mm
Master (outer) case height: 400 mm
Master (outer) case gross weight: 17 kg

Data transmission
Jumbo frames support: Yes
Storeandforward: Yes
Jumbo frames: 2000
MAC address table: 1000 entries
Packet buffer memory: 1 MB
Throughput: 7.44 Mpps
Switching capacity: 10 Gbit/s

Power over Ethernet (PoE)
Power over Ethernet (PoE): No
