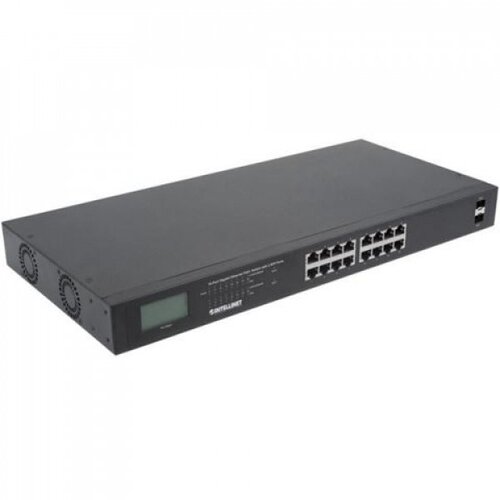

Intellinet 16-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports, LCD Display, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 370 W, Endspan, 19" Rackmount

Certification: FCC A, CE, RoHS

Design
Product colour: Black
LED indicators: Speed, Link, Activity, PoE, Power
Number of fans: 2 fan(s)
Rack mounting: Yes
Housing material: Metal
Stackable: No

Power
AC input voltage: 100 240 V
AC input frequency: 50 60 Hz
Power protection features: Overload, Short circuit, Over voltage
Power consumption (max): 420 W

Operational conditions
Operating relative humidity (HH): 10 90%
Operating temperature (TT): 0 45 C
Storage temperature (TT): 10 70 C

Management features
Switch type: Unmanaged

Weight & dimensions
Height: 44 mm
Width: 441.1 mm
Weight: 4 kg
Depth: 204.3 mm

Network
Networking standards: IEEE 802.3x, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex: Yes
Auto MDI/MDIX: Yes
Copper ethernet cabling technology: 100BASETX, 1000BASET
Flow control support: Yes
10G support: No
Cable types supported: Cat5, Cat5e
Autosensing: Yes

Performance
Mean time between failures (MTBF): 144000 h
Noise level: 21.3 dB

Packaging data
Cables included: AC
Manual: Yes
Rack mount kit: Yes

Ports & interfaces
SFP module slots quantity: 2
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ45 Ethernet ports quantity: 16

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
MAC address table: 8192 entries
Switching capacity: 36 Gbit/s
Packet buffer memory: 0.5 MB
Packet forwarding rate (100 Mbps): 148800 pps
Storeandforward: Yes
Packet forwarding rate (10 Mbps): 14880 pps
Packet forwarding rate (1 Gbps): 1488000 pps

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 370 W
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 16
