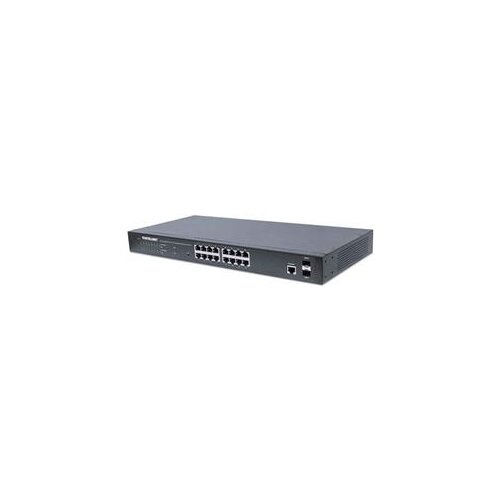

Intellinet 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 374 W, Endspan, 19" Rackmount
422,50 €
Design Rack mounting: Yes LED indicators: Activity, PoE, Link, Power Housing material: Metal Form factor: 1U Number of fans: 2 fan(s) Product colour: Black Power Power consumption (max): 410 W AC input frequency: 50 60 Hz AC input voltage: 100 240 V Security ICMP attack prevention: Yes Security algorithms: SNMP, SNMPv3, SSH2 Operational conditions Operating relative humidity (HH): 10 90% Operating temperature (TT): 0 40 C Storage temperature (TT): 20 90 C Management features Switch type: Manage
Brend:Intellinet
- Na zalihama
Intellinet 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 374 W, Endspan, 19" Rackmount
Trenutno najbolja ponuda:
422,50 €u Tia mobiteli
Slični proizvodi iz Switchevi
Opis i karakteristike
Design
Rack mounting: Yes
LED indicators: Activity, PoE, Link, Power
Housing material: Metal
Form factor: 1U
Number of fans: 2 fan(s)
Product colour: Black
Power
Power consumption (max): 410 W
AC input frequency: 50 60 Hz
AC input voltage: 100 240 V
Security
ICMP attack prevention: Yes
Security algorithms: SNMP, SNMPv3, SSH2
Operational conditions
Operating relative humidity (HH): 10 90%
Operating temperature (TT): 0 40 C
Storage temperature (TT): 20 90 C
Management features
Switch type: Managed
Switch layer: L2+
Quality of Service (QoS) support: Yes
Webbased management: Yes
Weight & dimensions
Height: 44 mm
Width: 440 mm
Depth: 208 mm
Weight: 2.5 kg
Network
Flow control support: Yes
Virtual LAN features: Portbased VLAN, Tagged VLAN
Link aggregation: Yes
Spanning tree protocol: Yes
Broadcast storm control: Yes
Port mirroring: Yes
Autonegotiation: Yes
Cable types supported: Cat4, Cat5, Cat5e, Cat3
Autosensing: Yes
Rate limiting: Yes
Full duplex: Yes
Copper ethernet cabling technology: 10BASET, 100BASETX, 1000BASET
VLAN support: Yes
Auto MDI/MDIX: Yes
Networking standards: IEEE 802.3ad, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u, IEEE 802.1w
Performance
Telnet: Yes
Noise level: 45 dB
Buffer size: 512 KB
Packaging data
Rack mount kit: Yes
Cables included: AC
Quick start guide: Yes
Manual: Yes
Protocols
IPv4 & IPv6 features: Dual stack IPv4/IPv6
Ports & interfaces
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ45 Ethernet ports quantity: 16
SFP module slots quantity: 2
Logistics data
Harmonized System (HS) code: 85176990
Data transmission
Storeandforward: Yes
Jumbo frames: 9000
Packet forwarding rate (100 Mbps): 148800 pps
MAC address table: 8000 entries
Packet forwarding rate (10 Mbps): 14880 pps
Forwarding rate: 1.488 Mpps
Packet forwarding rate (1 Gbps): 1488000 pps
Switching capacity: 36 Gbit/s
Jumbo frames support: Yes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 374 W
Rack mounting: Yes
LED indicators: Activity, PoE, Link, Power
Housing material: Metal
Form factor: 1U
Number of fans: 2 fan(s)
Product colour: Black
Power
Power consumption (max): 410 W
AC input frequency: 50 60 Hz
AC input voltage: 100 240 V
Security
ICMP attack prevention: Yes
Security algorithms: SNMP, SNMPv3, SSH2
Operational conditions
Operating relative humidity (HH): 10 90%
Operating temperature (TT): 0 40 C
Storage temperature (TT): 20 90 C
Management features
Switch type: Managed
Switch layer: L2+
Quality of Service (QoS) support: Yes
Webbased management: Yes
Weight & dimensions
Height: 44 mm
Width: 440 mm
Depth: 208 mm
Weight: 2.5 kg
Network
Flow control support: Yes
Virtual LAN features: Portbased VLAN, Tagged VLAN
Link aggregation: Yes
Spanning tree protocol: Yes
Broadcast storm control: Yes
Port mirroring: Yes
Autonegotiation: Yes
Cable types supported: Cat4, Cat5, Cat5e, Cat3
Autosensing: Yes
Rate limiting: Yes
Full duplex: Yes
Copper ethernet cabling technology: 10BASET, 100BASETX, 1000BASET
VLAN support: Yes
Auto MDI/MDIX: Yes
Networking standards: IEEE 802.3ad, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u, IEEE 802.1w
Performance
Telnet: Yes
Noise level: 45 dB
Buffer size: 512 KB
Packaging data
Rack mount kit: Yes
Cables included: AC
Quick start guide: Yes
Manual: Yes
Protocols
IPv4 & IPv6 features: Dual stack IPv4/IPv6
Ports & interfaces
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ45 Ethernet ports quantity: 16
SFP module slots quantity: 2
Logistics data
Harmonized System (HS) code: 85176990
Data transmission
Storeandforward: Yes
Jumbo frames: 9000
Packet forwarding rate (100 Mbps): 148800 pps
MAC address table: 8000 entries
Packet forwarding rate (10 Mbps): 14880 pps
Forwarding rate: 1.488 Mpps
Packet forwarding rate (1 Gbps): 1488000 pps
Switching capacity: 36 Gbit/s
Jumbo frames support: Yes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 374 W
