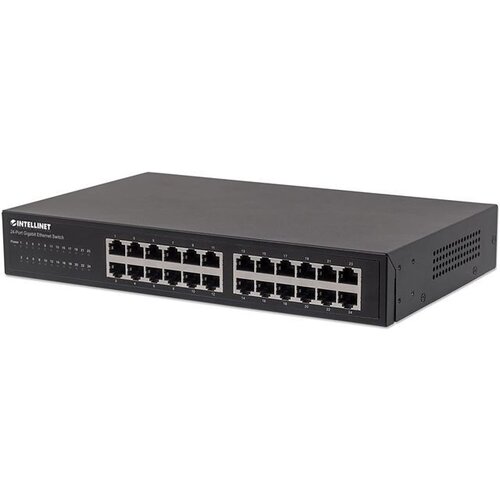

Intellinet 24-Port Gigabit Ethernet Switch, 24 x 10/100/1000 Mbit/s RJ45-Ports, IEEE 802.3az (Energy Efficient Ethernet), Desktop, 19" Rackmount, Metal

Certification: FCC A, CE

Design
LED indicators: Power, Activity, Link
Product colour: Black
Housing material: Metal
Rack mounting: Yes

Power
Power consumption (max): 16 W
AC input voltage: 100 240 V
AC input frequency: 50 60 Hz

Operational conditions
Storage temperature (TT): 20 70 C
Operating temperature (TT): 0 40 C
Operating relative humidity (HH): 10 90%

Management features
Control and Provisioning of Wireless Access Points (CAPWAP): Yes

Weight & dimensions
Height: 44 mm
Weight: 2.6 kg
Depth: 180 mm
Width: 280 mm

Network
10G support: No
MAC address autoaging supported: Yes
Flow control support: Yes
Cable types supported: Cat5, Cat5e, Cat4, Cat3
MAC address autolearning supported: Yes
Autonegotiation: Yes
Autosensing: Yes
Auto MDI/MDIX: Yes
Networking standards: IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3az
Full duplex: Yes
Copper ethernet cabling technology: 10BASET, 100BASETX, 1000BASET

Packaging data
Rack mount kit: Yes
Cables included: AC
User guide: Yes

Ports & interfaces
Power connector: ACin jack
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ45 Ethernet ports quantity: 24

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Storeandforward: Yes
Jumbo frames: 9000
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148800 pps
MAC address table: 16384 entries
Packet buffer memory: 0.512 MB
Packet forwarding rate (10 Mbps): 14880 pps
Jumbo frames support: Yes
Switching capacity: 48 Gbit/s

Power over Ethernet (PoE)
Power over Ethernet (PoE): No
