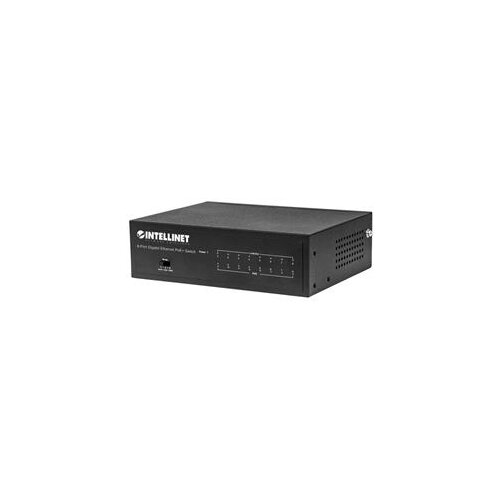

Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 60 W, Desktop, Box

Certification: FCC Class B, CE, RoHS

Design
Housing material: Metal
Product colour: Black
LED indicators: Link, PoE, Activity, Power

Power
Power source: AC
Power supply included: Yes
Power protection features: Short circuit, Over voltage, Overload
AC input frequency: 50 60 Hz
Power consumption (max): 67.3 W
AC input voltage: 100 240 V

Operational conditions
Operating relative humidity (HH): 10 90%
Operating temperature (TT): 0 40 C

Management features
Control and Provisioning of Wireless Access Points (CAPWAP): Yes
Switch type: Managed

Weight & dimensions
Width: 155 mm
Depth: 118 mm
Height: 46 mm
Weight: 930 g

Network
Networking standards: IEEE 802.3x, IEEE 802.3af, IEEE 802.3az, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Copper ethernet cabling technology: 100BASETX, 10BASET, 1000BASET
VLAN support: Yes
Full duplex: Yes
10G support: No
Auto MDI/MDIX: Yes
Cable types supported: Cat4, Cat3, Cat5, Cat5e
Virtual LAN features: Private VLAN
Flow control support: Yes
Autosensing: Yes

Packaging data
Manual: Yes
Cables included: AC
Rack mount kit: Yes

Ports & interfaces
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ45 Ethernet ports quantity: 8
Power connector: DCin jack

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Switching capacity: 16 Gbit/s
MAC address table: 4096 entries
Packet buffer memory: 1.5 MB
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (10 Mbps): 14880 pps
Packet forwarding rate (100 Mbps): 148800 pps
Storeandforward: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 60 W
Power over Ethernet plus (PoE+) ports quantity: 8
