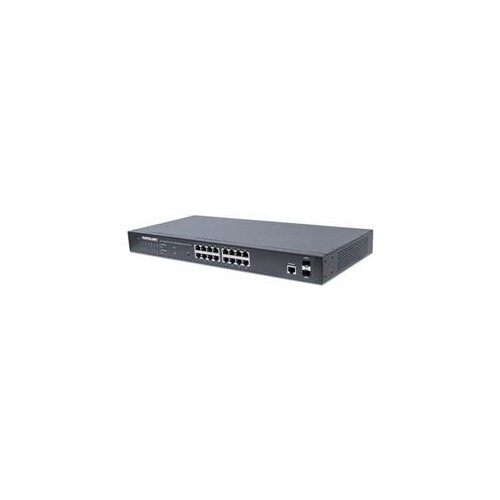

Intellinet 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports, 16 x PoE ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), 2 x SFP, Endspan, 19" Rackmount

Certification: FCC Class A, CE

Design
Rack mounting: Yes
Number of fans: 2 fan(s)
Form factor: 1U
Housing material: Metal
LED indicators: Yes
Product colour: Black

Power
Power protection features: Short circuit, Over voltage, Overload
Power consumption (max): 260 W
Power source: AC
AC input voltage: 100 240 V
AC input frequency: 50 60 Hz

Security
Access Control List (ACL): Yes
Authentication: Portbased authentication
IGMP snooping: Yes
Security algorithms: HTTPS, 802.1x RADIUS, SSH, SSH2

Operational conditions
Operating temperature (TT): 0 40 C
Storage temperature (TT): 20 90 C
Operating relative humidity (HH): 10 90%

Management features
Switch type: Managed
Switch layer: L2+
Webbased management: Yes
Quality of Service (QoS) support: Yes

Weight & dimensions
Width: 440 mm
Height: 44 mm
Depth: 208 mm
Weight: 3.86 kg

Network
Cable types supported: Cat3, Cat5, Cat5e, Cat4
Port mirroring: Yes
Full duplex: Yes
Rate limiting: Yes
Link aggregation: Yes
Spanning tree protocol: No
10G support: No
Flow control support: Yes
Number of VLANs: 4096
Virtual LAN features: Tagged VLAN, Portbased VLAN
Broadcast storm control: Yes
Auto MDI/MDIX: Yes
Copper ethernet cabling technology: 1000BASET, 10BASET, 100BASETX
VLAN support: Yes
Autosensing: Yes
Networking standards: IEEE 802.1D, IEEE 802.3u, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad, IEEE 802.1w

Packaging data
Cables included: AC
Rack mount kit: Yes
Manual: Yes

Protocols
Management protocols: SNMP, Telnet, SSH

Ports & interfaces
Gigabit Ethernet (copper) ports quantity: 16
SFP module slots quantity: 2
Basic switching RJ45 Ethernet ports quantity: 16
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
MAC address table: 8000 entries
Packet buffer memory: 0.512 MB
Switching capacity: 36 Gbit/s
Jumbo frames: 9000
Storeandforward: Yes
Jumbo frames support: Yes
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 220 W
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE): Yes

Multicast features
Multicast support: Yes
