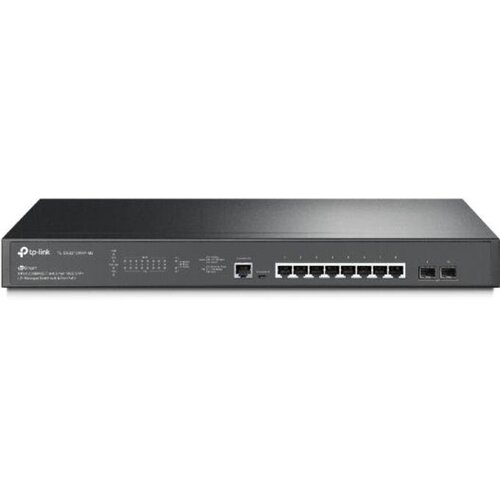

Tp-link Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
539,50 €
Certification: CE, FCC, RoHS Design Product colour: Black LED indicators: Yes Form factor: 1U Rack mounting: Yes Number of fans: 2 fan(s) Power AC input voltage: 100 240 V AC input frequency: 50/60 Hz Power source: AC Power consumption (max): 285.9 W Power supply included: Yes Security Security algorithms: SSH, HTTPS, SSL/TLS, SSH2 MAC address filtering: Yes Queue scheduling algorithms: Weighted Round Robin (WRR), SP, WRR+SP Authentication: MACbased authentication, Portbased authentication Loop
Brend:Tp-link
- Na zalihama
Tp-link Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
Trenutno najbolja ponuda:
539,50 €u Tia mobiteli
Slični proizvodi iz Switchevi
Opis i karakteristike
Certification: CE, FCC, RoHS
Design
Product colour: Black
LED indicators: Yes
Form factor: 1U
Rack mounting: Yes
Number of fans: 2 fan(s)
Power
AC input voltage: 100 240 V
AC input frequency: 50/60 Hz
Power source: AC
Power consumption (max): 285.9 W
Power supply included: Yes
Security
Security algorithms: SSH, HTTPS, SSL/TLS, SSH2
MAC address filtering: Yes
Queue scheduling algorithms: Weighted Round Robin (WRR), SP, WRR+SP
Authentication: MACbased authentication, Portbased authentication
Loop protection: Yes
SSH/SSL support: Yes
Authentication type: AAA, TACACS+
BPDU filtering/protection: Yes
IPMACPort binding: Yes
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping, DHCPv6 client
IGMP snooping: Yes
Static port security: Yes
Access Control List (ACL): Yes
Password protection: Yes
Operational conditions
Storage temperature (TT): 40 70 C
Operating relative humidity (HH): 10 90%
Operating temperature (TT): 0 45 C
Storage relative humidity (HH): 5 90%
Heat dissipation: 975.54 BTU/h
Management features
Configuring Location Settings (CLI): Yes
System event log: Yes
Webbased management: Yes
ARP inspection: Yes
Traffic classification: Yes
Cloudmanaged: Yes
Quality of Service (QoS) support: Yes
Switch layer: L2+
Switch type: Managed
MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Weight & dimensions
Depth: 180 mm
Width: 440 mm
Height: 44 mm
Network
Virtual LAN features: Voice VLAN, Portbased VLAN, Tagged VLAN, Protocolbased VLAN, MAC addressbased VLAN, Private VLAN
IP routing: Yes
Spanning tree protocol: Yes
Rate limiting: Yes
Ethernet LAN data rates: 100,1000,2500 Mbit/s
Link aggregation: Yes
Networking standards: IEEE 802.1s, IEEE 802.1D, IEEE 802.1w
Headofline (HOL) blocking: Yes
10G support: Yes
Port mirroring: Yes
Broadcast storm control: Yes
VLAN support: Yes
Number of VLANs: 4000
Flow control support: Yes
Packaging data
Quick start guide: Yes
Package type: Box
Cables included: AC
Protocols
GARP VLAN Registration Protocol (GVRP): Yes
Management protocols: SNMPv1/v2c/v3, SNTP
Ports & interfaces
Console port: RJ45/microUSB
2.5G Ethernet (copper) ports quantity: 8
Basic switching RJ45 Ethernet ports quantity: 8
Power connector: ACin jack
SFP+ module slots quantity: 2
Basic switching RJ45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Data transmission
Static route: Yes
Jumbo frames: 9000
Forwarding rate: 59.52 Mpps
Number of static routes: 48
Number of IP interfaces: 16
Switching capacity: 80 Gbit/s
MAC address table: 16000 entries
Packet buffer memory: 12 MB
Jumbo frames support: Yes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 240 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Multicast features
Multicast Listener Discovery (MLD) snooping: Y
Multicast support: Yes
Design
Product colour: Black
LED indicators: Yes
Form factor: 1U
Rack mounting: Yes
Number of fans: 2 fan(s)
Power
AC input voltage: 100 240 V
AC input frequency: 50/60 Hz
Power source: AC
Power consumption (max): 285.9 W
Power supply included: Yes
Security
Security algorithms: SSH, HTTPS, SSL/TLS, SSH2
MAC address filtering: Yes
Queue scheduling algorithms: Weighted Round Robin (WRR), SP, WRR+SP
Authentication: MACbased authentication, Portbased authentication
Loop protection: Yes
SSH/SSL support: Yes
Authentication type: AAA, TACACS+
BPDU filtering/protection: Yes
IPMACPort binding: Yes
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping, DHCPv6 client
IGMP snooping: Yes
Static port security: Yes
Access Control List (ACL): Yes
Password protection: Yes
Operational conditions
Storage temperature (TT): 40 70 C
Operating relative humidity (HH): 10 90%
Operating temperature (TT): 0 45 C
Storage relative humidity (HH): 5 90%
Heat dissipation: 975.54 BTU/h
Management features
Configuring Location Settings (CLI): Yes
System event log: Yes
Webbased management: Yes
ARP inspection: Yes
Traffic classification: Yes
Cloudmanaged: Yes
Quality of Service (QoS) support: Yes
Switch layer: L2+
Switch type: Managed
MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Weight & dimensions
Depth: 180 mm
Width: 440 mm
Height: 44 mm
Network
Virtual LAN features: Voice VLAN, Portbased VLAN, Tagged VLAN, Protocolbased VLAN, MAC addressbased VLAN, Private VLAN
IP routing: Yes
Spanning tree protocol: Yes
Rate limiting: Yes
Ethernet LAN data rates: 100,1000,2500 Mbit/s
Link aggregation: Yes
Networking standards: IEEE 802.1s, IEEE 802.1D, IEEE 802.1w
Headofline (HOL) blocking: Yes
10G support: Yes
Port mirroring: Yes
Broadcast storm control: Yes
VLAN support: Yes
Number of VLANs: 4000
Flow control support: Yes
Packaging data
Quick start guide: Yes
Package type: Box
Cables included: AC
Protocols
GARP VLAN Registration Protocol (GVRP): Yes
Management protocols: SNMPv1/v2c/v3, SNTP
Ports & interfaces
Console port: RJ45/microUSB
2.5G Ethernet (copper) ports quantity: 8
Basic switching RJ45 Ethernet ports quantity: 8
Power connector: ACin jack
SFP+ module slots quantity: 2
Basic switching RJ45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Data transmission
Static route: Yes
Jumbo frames: 9000
Forwarding rate: 59.52 Mpps
Number of static routes: 48
Number of IP interfaces: 16
Switching capacity: 80 Gbit/s
MAC address table: 16000 entries
Packet buffer memory: 12 MB
Jumbo frames support: Yes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 240 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Multicast features
Multicast Listener Discovery (MLD) snooping: Y
Multicast support: Yes
