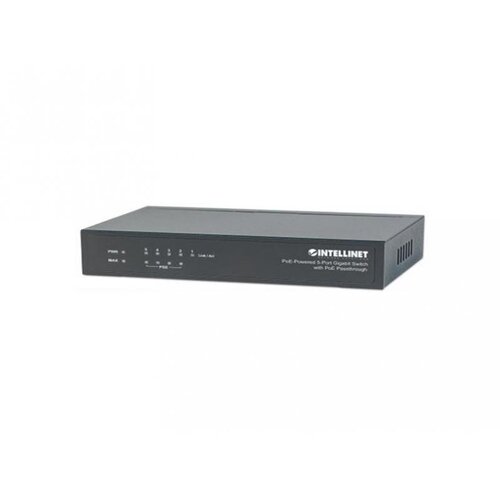

Intellinet 5-Port Gigabit Switch with PoE Passthrough, 4 x PSE PoE ports, 1 x PD PoE port, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), IEEE 802.3az Energy Efficient Ethernet, Desktop

Certification: FCC Class B, CE, RoHS

Design
LED indicators: Link, Activity, Power
Product colour: Black
Housing material: Metal

Power
AC input frequency: 50 60 Hz
AC input voltage: 100 240 V
Input current: 2.5 A
Power consumption (max): 75 W
Power supply included: Yes

Operational conditions
Storage temperature (TT): 0 70 C
Operating relative humidity (HH): 10 90%
Operating temperature (TT): 0 40 C

Weight & dimensions
Weight: 600 g
Depth: 78 mm
Height: 28 mm
Width: 140 mm

Network
Networking standards: IEEE 802.3x, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at
10G support: No
Cable types supported: Cat6, Cat5e
Flow control support: Yes
Auto MDI/MDIX: Yes
Copper ethernet cabling technology: 1000BASET, 10BASET, 100BASETX

Packaging data
Manual: Yes
Cables included: AC

Ports & interfaces
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ45 Ethernet ports quantity: 5

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Storeandforward: Yes
Switching capacity: 10 Gbit/s
Packet forwarding rate (100 Mbps): 148800 pps
MAC address table: 2048 entries
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (10 Mbps): 14880 pps

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 26 W
Power over Ethernet (PoE): Yes
