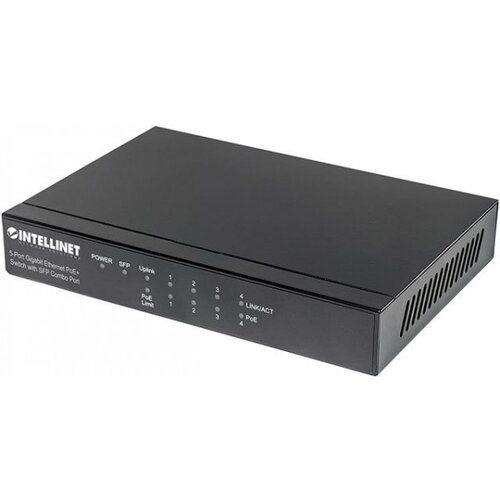

Intellinet 5-Port Gigabit Ethernet PoE+ Switch with SFP Combo Port, 4 x PSE Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 80 W, Desktop (Euro 2-pin plug)

Certification: FCC B, CE, IEC6100042, IEC6100044, IEC6100045

Design
Housing material: Metal
LED indicators: Power, Activity, Link, PoE
Product colour: Black

Power
Power consumption (max): 90 W
Power supply included: Yes
AC input voltage: 100 240 V
AC input frequency: 50 60 Hz

Operational conditions
Operating temperature (TT): 0 40 C
Operating relative humidity (HH): 10 90%
Storage temperature (TT): 20 70 C

Weight & dimensions
Height: 24 mm
Width: 160 mm
Depth: 110 mm
Weight: 950 g

Network
Copper ethernet cabling technology: 100BASETX, 10BASET, 1000BASET
Auto MDI/MDIX: Yes
10G support: No
Full duplex: Yes
Networking standards: IEEE 802.3z, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at
Flow control support: Yes
Autonegotiation: Yes

Performance
Harmonized System (HS) code: 85176990

Packaging data
Manual: Yes
Quick start guide: Yes

Ports & interfaces
Power connector: DCin jack
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ45 Ethernet ports quantity: 5
Combo SFP ports quantity: 1

Data transmission
Jumbo frames support: Yes
Switching capacity: 10 Gbit/s
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148800 pps
Jumbo frames: 9000
Storeandforward: Yes
MAC address table: 2000 entries
Packet forwarding rate (10 Mbps): 14880 pps

Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 80 W
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 4
