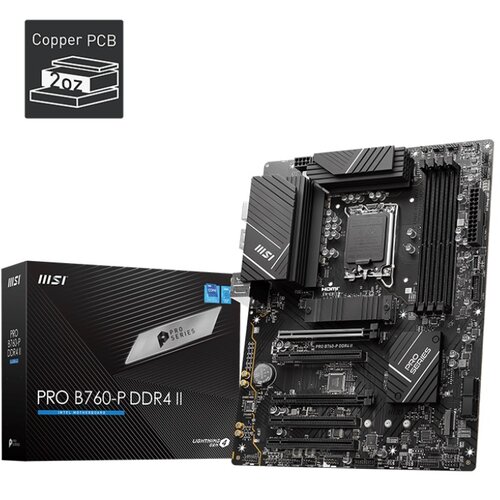

MSI PRO B760-P DDR4 II motherboard Intel B760 LGA 1700 ATX

Processor
Processor socket: LGA 1700
Compatible processor series: Intel Core i5, Intel Celeron, Intel Core i7, Intel Pentium Gold, Intel Core i3
Processor manufacturer: Intel

Features
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Motherboard form factor: ATX

Memory
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR4SDRAM
Memory channels: Dualchannel
Supported memory clock speed (max): 5333 MHz
Unbuffered memory: Yes
Maximum internal memory: 128 GB

Weight & dimensions
Width: 243.8 mm
Depth: 304.8 mm

Network
Ethernet LAN: Yes
WiFi: No
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125BG

Internal I/O
Power fan connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel audio connector: Yes
12V power connector: Yes
Front panel connector: Yes
Number of SATA III connectors: 4
CPU fan connector: Yes
Chassis intrusion connector: Yes
ATX Power connector (24pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
S/PDIF out connector: Yes
USB 2.0 connectors: 4

Packaging content
Drivers included: Yes
Cables included: SATA

Storage controllers
RAID levels: 10, 1, 5, 0
RAID support: Yes
Supported storage drive interfaces: SATA III

Rear panel I/O ports
Ethernet LAN (RJ45) ports: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) TypeC ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 2
PCI Express x4 (Gen 4.x) slots: 1
