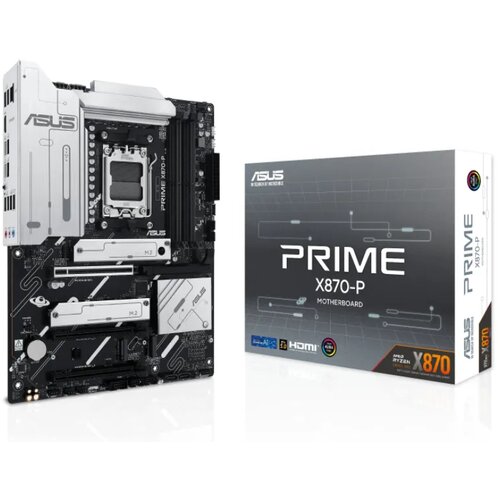

Asus AM5 AS PRIME X870-P

Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 9 8th Gen, AMD Ryzen 5, AMD Ryzen 9 7th Gen, AMD Ryzen 3, AMD Ryzen 7, AMD Ryzen 9 9th Gen
Processor socket: Socket AM5
Supported processor sockets: Socket AM5

Graphics
Onboard graphics card: No
Parallel processing technology support: Not supported

Features
Power source type: ATX
Cooling type: Passive
Windows operating systems supported: Windows 10, Windows 11
Product colour: Black
Motherboard chipset family: AMD
Motherboard form factor: ATX
Motherboard chipset: AMD X870
Audio output channels: 7.1 channels

Memory
Supported memory clock speed (max): 8000 MHz
Number of memory slots: 4
Supported memory types: DDR5SDRAM
Memory slots type: DIMM
Memory channels: Dualchannel
Maximum internal memory: 192 GB
Unbuffered memory: Yes

Weight & dimensions
Depth: 244 mm
Width: 305 mm
Height: 48 mm

Network
Ethernet LAN: Yes
WiFi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
WiFi standards: 802.11g, WiFi 4 (802.11n), 802.11b, 802.11a, WiFi 6 (802.11ax), WiFi 5 (802.11ac), WiFi 7 (802.11be), WiFi 6E (802.11ax)
Bluetooth version: 5.4
Top WiFi standard: WiFi 7 (802.11be)
Bluetooth: Yes

Internal I/O
RGB LED pin header: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
12V power connector: Yes
Front panel audio connector: Yes
EPS power connector (8pin): Yes
Number of COM connectors: 1
TPM connector: Yes
CPU fan connector: Yes
Number of chassis fan connectors: 4
ATX Power connector (24pin): Yes
Number of SATA III connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2

BIOS
BIOS type: UEFI AMI

Packaging data
Package weight: 1.56 kg
Package width: 353 mm
Package depth: 273 mm
Package height: 68 mm

Packaging content
Cables included: SATA

Storage controllers
Number of HDDs supported: 2
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 5, 1, 10, 0
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
Linein: Yes
Microphone in: Yes
USB4 Gen 2x2 ports quantity: 2
Ethernet LAN (RJ45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) TypeA ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1
HDMI ports quantity: 1
USB 2.0 ports quantity: 4
HDMI version: 2.1
DisplayPort version: 1.4a

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 3
Number of M.2 (M) slots: 4

Other features
BacktoBIOS button: Yes
Weight: 1.56 kg
